Features: Easy to Use Low Power1 mA Power Supply Current (5 mW on +5 VS) High Speed and Fast Settling on +5 V300 MHz, 3 dB Bandwidth (G = +1)180 MHz, 3 dB Bandwidth (G = +2)2000 V/s Slew Rate29 ns Settling Time to 0.1% Good Video Specifications (RL = 1 k, G = +2)Gain Flatness 0.1 dB to 25 MHz0.02...
AD8011: Features: Easy to Use Low Power1 mA Power Supply Current (5 mW on +5 VS) High Speed and Fast Settling on +5 V300 MHz, 3 dB Bandwidth (G = +1)180 MHz, 3 dB Bandwidth (G = +2)2000 V/s Slew Rate29 ns ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
-3dB Bandwidth | 400MHz |
Slew Rate | 3.5kV/s |
Vos | 2mV |
Ib | 5A |
Input Noise (nV/rtHz) | 2nV/rtHz |
Vcc-Vee Supply (V) | 3 to 12 |
Iq per Amplifier | 1.3mA |
# OpAmps per Pkg | 1 |
Operating Temp Range | -40 to +85 |
Packages | DIP,SOIC |
The AD8011 is a very low power, high-speed amplifier designed to operate on +5 V or ±5 V supplies. With wide bandwidth, low distortion and low power, this device is ideal as a general-purpose amplifier. It also can be used to replace high-speed amplifiers consuming more power. The AD8011 is a current feedback amplifier and features gain flatness of 0.1 dB to 25 MHz while offering differential gain and phase error of 0.02% and 0.06° on a single +5 V supply. This makes the AD8011 ideal for professional video electronics such as cameras, video switchers or any high speed portable equipment. Additionally, the AD8011's low distortion and fast settling make it ideal for buffering high speed 8-, 10-, 12-bit A-to-D converters.

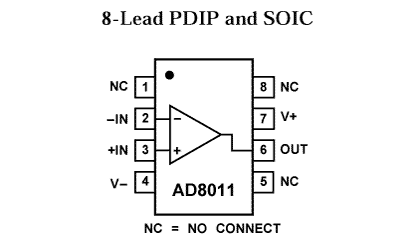

The AD8011 offers very low power of 1 mA max and can run on single +5 V to +12 V supplies. All this is offered in a small 8-lead plastic DIP or 8-lead SOIC package. These features fit well with portable and battery-powered applications where size and power are critical.The AD8011 is available in the industrial temperature range of 40°C to +85°C.
