AD8009

Features: Ultrahigh Speed5,500 V/s Slew Rate, 4 V Step, G = +2545 ps Rise Time, 2 V Step, G = +2Large Signal Bandwidth440 MHz, G = +2320 MHz, G = +10Small Signal Bandwidth (3 dB)1 GHz, G = +1700 MHz, G = +2Settling Time 10 ns to 0.1%, 2 V Step, G = +2Low Distortion Over Wide BandwidthSFDR44 dBc @...

product image

AD8009 Picture
See larger image
SeekIC No. : 004271460 Detail

AD8009: Features: Ultrahigh Speed5,500 V/s Slew Rate, 4 V Step, G = +2545 ps Rise Time, 2 V Step, G = +2Large Signal Bandwidth440 MHz, G = +2320 MHz, G = +10Small Signal Bandwidth (3 dB)1 GHz, G = +1700 MH...

AD8009 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD8009
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Ultrahigh Speed
5,500 V/s Slew Rate, 4 V Step, G = +2
545 ps Rise Time, 2 V Step, G = +2
Large Signal Bandwidth
440 MHz, G = +2
320 MHz, G = +10
Small Signal Bandwidth (3 dB)
1 GHz, G = +1
700 MHz, G = +2
Settling Time 10 ns to 0.1%, 2 V Step, G = +2
Low Distortion Over Wide Bandwidth
SFDR
44 dBc @ 150 MHz, G = +2, VO = 2 V p-p
41 dBc @ 150 MHz, G = +10, VO = 2 V p-p
3rd Order Intercept (3IP)
26 dBm @ 70 MHz, G = +10
18 dBm @ 150 MHz, G = +10
Good Video Specifications
Gain Flatness 0.1 dB to 75 MHz
0.01% Differential Gain Error, RL = 150
0.01%Differential Phase Error, RL = 150
High Output Drive
175 mA Output Load Drive
10 dBm with 38 dBc SFDR @ 70 MHz, G = +10
Supply Operation
±5 V Voltage Supply
14 mA (Typ) Supply Current




Application

Pulse Amplifier
IF/RF Gain Stage/Amplifiers
High Resolution Video Graphics
High Speed Instrumentations
CCD Imaging Amplifier

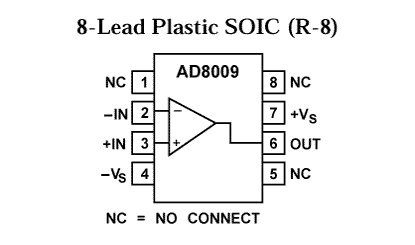

Pinout

AD8009 Diagram

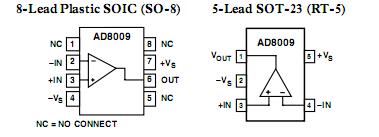

Connection Diagram




Specifications

-3dB Bandwidth 1GHz
Slew Rate 5.5kV/s
Vos 2mV
Ib 50A
Input Noise (nV/rtHz) 1.9nV/rtHz
Vcc-Vee Supply (V) 5 to 12
Iq per Amplifier 16mA
# OpAmps per Pkg 1
Operating Temp Range -40 to +85
Packages SOIC,SOT


Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .12.6 V
Internal Power Dissipation2
Small Outline Package (R) . . . . . . . . . . . . . . . . .. .. . . . 0.75 Watts
Input Voltage (Common Mode) . . . . . . . . . . . . . . . .. . . . . . . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . ... . . ±3.5 V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . .Observe Power Derating Curves
Storage Temperature Range R Package . . . . 65°C to +125°C
Operating Temperature Range (A Grade) . . . . 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . .. . . . .+300°C




Description

The AD8009 is an ultrahigh speed current feedback amplifier with a phenomenal 5,500 V/µs slew rate that results in a rise time of 545 ps, making it ideal as a pulse amplifier.

The high slew rate reduces the effect of slew rate limiting and results in the large signal bandwidth of 440 MHz required for high resolution video graphic systems. Signal quality is main- tained over a wide bandwidth with worst case distortion of 40 dBc @ 250 MHz (G = +10, 1 V p-p). For applications with multitone signals such as IF signal chains, the third order Intercept (3IP) of 12 dBm is achieved at the same frequency. This distortion performance coupled with the current feedback architecture make the AD8009 a flexible component for a gain stage amplifier in IF/RF signal chains.
