AD8003

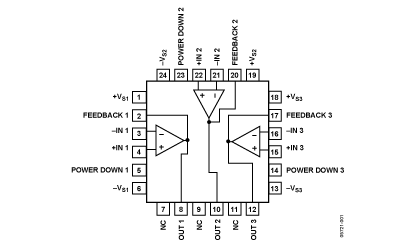

The AD8003 has excellent video specifications with a frequency response that remains flat out to 190 MHz and 0.1% settling within 12 ns to ensure that even the most demanding video systems maintain excellent fidelity. For applications that use NTSC video, as well as high speed video, the amplifier provides a differential gain of 0.05% and a differential gain of 0.01°. The AD8003 operates on only 9.5 mA of supply current per amplifier. The independent power-down function of the AD8003 reduces the quiescent current even further to 1.6 mA. The AD8003 amplifier is available in a compact 4 mm * 4 mm, 24-lead LFCSP_VQ. The AD8003 is rated to work over the industrial temperature range of -40°C to +85°C. The AD8003 has very low spurious-free dynamic range (SFDR)(-73 dBc @ 20 MHz)and noise (1.8 nV/Hz). With a supply range between 5 V and 11 V and ability to source 100 mA of output current, the AD8003 is ideal for a variety of applications. The AD8003 is a triple ultrahigh speed current feedback amplifier. Using ADI's proprietary eXtra Fast Complementary Bipolar (XFCB)process, the AD8003 achieves a bandwidth of 1.5 GHz and a slew rate of 4300 V/s. Additionally, the amplifier provides excellent dc precision with an input bias current of 50 A maximum and a dc input voltage of 0.7 mV.

The features of AD8003 can be summarized as (1)high speed 1650 MHz (G = +1)/ 730 MHz (G = +2, VO = 2 V p-p)/ 4300 V/s (G = +2, 4 V step)/ settling time 12 ns to 0.1%, 2 V step; (2)excellent for QXGA resolution video gain flatness 0.1 dB to 190 MHz/ 0.05% differential gain error, RL = 150 / 0.01° differential phase error, RL = 150 ; (3)low voltage offset: 0.7 mV (typical); (4)low input bias current: 7 A (typical); (5)low noise: 1.8 nV/Hz; (6)low distortion over wide bandwidth: SFDR -73 dBc @ 20 MHz; (7)high output drive: 100 mA output load drive; (8)supply operation: +5 V to ±5 V voltage supply; (9)supply current: 9.5 mA/amplifier.

The absolute maximum ratings of AD8003 are (1)supply voltage: 11 V; (2)power dissipation: see figure 3; (3)common-mode input voltage -V- 0.7 V to +V+ 0.7 V; (4)differential input voltage: ±V; (5)exposed paddle voltage: -V; (6)storage temperature range: -65°C to +125°C; (7)operating temperature range -40°C to +85°C; (8)lead temperature (Soldering 10 sec): 300°C; (9)junction temperature: 150°C.
