Features: ·Fast throughput rate: 100 kSPS·Specified for VDD of 2.5 V to 5.5 V·Low power·4 mW typ at 100 kSPS with 3 V supplies·17 mW typ at 100 kSPS with 5 V supplies·Wide input bandwidth:·81 dB SINAD at 10 kHz input frequency·Flexible power/serial clock speed management·No pipeline delays·High sp...
AD7940: Features: ·Fast throughput rate: 100 kSPS·Specified for VDD of 2.5 V to 5.5 V·Low power·4 mW typ at 100 kSPS with 3 V supplies·17 mW typ at 100 kSPS with 5 V supplies·Wide input bandwidth:·81 dB SIN...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Rating |
VDD to GND Analog Input Voltage to GND Digital Input Voltage to GND Digital Output Voltage to GND Input Current to Any Pin Except Supplies1 Operating Temperature Range Commercial (B Version) Storage Temperature Range Junction Temperature SOT-23 Package, Power Dissipation JA Thermal Impedance JC Thermal Impedance MSOP Package, Power Dissipation JA Thermal Impedance JC Thermal Impedance Lead Temperature, Soldering Vapor Phase (60 secs) Infared (15 secs) ESD |
−0.3 V to +7 V −0.3 V to VDD + 0.3 V −0.3 V to +7 V −0.3 V to VDD + 0.3 V ±10 mA −40°C to +85°C −65°C to +150°C 150°C 450 mW 229.6°C/W 91.99°C/W 450 mW 205.9°C/W 43.74°C/W 215°C 220°C 4 kV |
Resolution (Bits) | 14bit |
T-Put Rate | 100kSPS |
# Chan | 1 |
Supply V | Single(+2.5),Single(+3),Single(+3.3),Single(+5) |
Pwr Diss (max) | n/a |
Interface | Ser,SPI |
Ain Range | Uni Vdd |
SNR (dB) | 81dB |
Pkg Type | SOP,SOT |

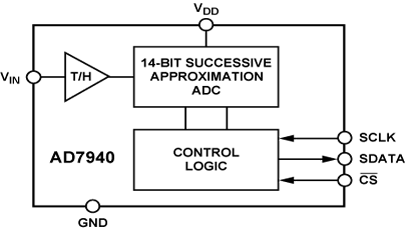

The AD79401 is a 14-bit, fast, low power, successive approxima-tion ADC. The part operates from a single 2.50 V to 5.5 V power supply and features throughput rates up to 100 kSPS. The part contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 7 MHz.
The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS and the conversion is also initiated at this point. There are no pipelined delays associated with the part.
The AD7940 uses advanced design techniques to achieve very low power dissipation at fast throughput rates. The reference for the part is taken internally from VDD, which allows the widest dynamic input range to the ADC. Thus, the analog input range for this part is 0 V to VDD. The conversion rate is determined by the SCLK frequency.
