AD7306

Features: RS-232 and RS-422 on One ChipSingle +5 V Supply0.1 F CapacitorsShort Circuit ProtectionExcellent Noise ImmunityLow Power BiCMOS TechnologyHigh Speed, Low Skew RS-422 Operation40C to +85C OperationsAPPLICATIONSDTE-DCE InterfacePacket SwitchingLocal Area NetworksData ConcentrationData Mult...

product image

AD7306 Picture
See larger image
SeekIC No. : 004269998 Detail

AD7306: Features: RS-232 and RS-422 on One ChipSingle +5 V Supply0.1 F CapacitorsShort Circuit ProtectionExcellent Noise ImmunityLow Power BiCMOS TechnologyHigh Speed, Low Skew RS-422 Operation40C to +85C O...

AD7306 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD7306
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

RS-232 and RS-422 on One Chip
Single +5 V Supply
0.1 F Capacitors
Short Circuit Protection
Excellent Noise Immunity
Low Power BiCMOS Technology
High Speed, Low Skew RS-422 Operation
40C to +85C Operations
APPLICATIONS
DTE-DCE Interface
Packet Switching
Local Area Networks
Data Concentration
Data Multiplexers
Integrated Services Digital Network (ISDN)

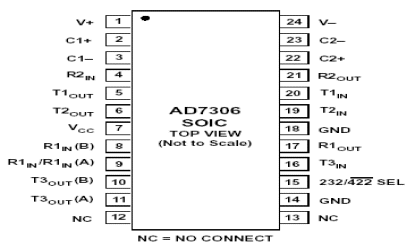

Pinout

AD7306 Diagram




Specifications

Protocols RS-232,RS-422
#Tx 3
# Rx 2
Data Rate 5Mbps
Max Pos Supply +5.25V
15 kV ESD No
Low Power Shutdown No
# Rx Active in Shutdown n/a
# Capacitors 4
Capacitor Size 0.1F
Operating Temp Range -40 to +85
Available Packages DIP,SOIC


(TA = +25°C unless otherwise noted)
VCC . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . +7 V
V . . . . . . . . . . . . . . . . . . . . . . . . . .(VCC 0.3 V) to +13.2 V
VInputs . . . . . . . . . . . . . . . . . . . . . . . . . .+0.3 V to 13.2 V
T1IN, T2IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V to V
T3IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..0.3 V to V
R1IN A/B, R2IN . . . . . . . . . . . . . . . . . . . . . . .25 V to +25 V
232/422 SEL . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to V
Outputs
T1OUT, T2OUT . . . . . . . . . . . . . . . . . . . . . . .15 V to +15 V
T3OUT(A), (B) . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
R1OUT, R2OUT . . . . . . . . . . . . . . . . 0.3 V to (VCC + 0.3 V)
Short Circuit Duration
TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Continuous
Power Dissipation
Small Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650 mW
DIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650 mW
Operating Temperature Range
Commercial (J Version) . . . . . . . . . . . . . . . 0 °C to +70° C
Industrial (A Version) . . . . . . . . . . . . . . 40 °C to +85° C
Storage Temperature Range . . . . . . . 65 °C to +150° C
Lead Temperature (Soldering, 10 secs) . . . . . . . . +300 °C




Description

The AD7306 line driver/receiver is a 5 V monolithic product which provides an interface between TTL signal levels and dual standard EIA RS-232/RS-422 signal levels. The part contains two RS-232



The AD7306 line driver/receiver is a 5 V monolithic product which provides an interface between TTL signal levels and dual standard EIA RS-232/RS-422 signal levels. The part contains two RS-232 drivers, one RS-422 driver, one RS-232 receiver,and one receiver path which can be configured either as RS-232 or as RS-422.An internal charge pump voltage converter facilitates operation from a single +5 V power supply.

The internal charge pump generates ±10 V levels allowing RS-232 output levels to be de-veloped without the need for external bipolar power supplies.A highly efficient charge pump design allows operation using non polarized, miniature 0.1 F capacitors.

This gives a consid-erable saving in printed circuit board space over conventional products which can use up to 10 F capacitors. The charge pump output voltages of AD7306 may also be used to power external cir-cuitry which requires dual supplies.
