ABV8068

Features: • Less than 0.4ps RMS (12KHz-20MHz) phase jitter for all frequencies.• Low phase noise output (@ 1MHz frequency offset)-140dBc/Hz for 320.0MHz, -131dBC/Hz for 622.08MHz• 20MHz-40MHz crystal input.• 320MHz-640MHz output.• PECL, or LVDS outputs.• No exte...

product image

ABV8068 Picture
See larger image
SeekIC No. : 004264356 Detail

ABV8068: Features: • Less than 0.4ps RMS (12KHz-20MHz) phase jitter for all frequencies.• Low phase noise output (@ 1MHz frequency offset)-140dBc/Hz for 320.0MHz, -131dBC/Hz for 622.08MHz• ...

ABV8068 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ABV8068
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Less than 0.4ps RMS (12KHz-20MHz) phase jitter for all frequencies.
• Low phase noise output (@ 1MHz frequency offset)
  -140dBc/Hz for 320.0MHz,
  -131dBC/Hz for 622.08MHz
• 20MHz-40MHz crystal input.
• 320MHz-640MHz output.
• PECL, or LVDS outputs.
• No external varicap required.
• Output Enable selector.
• Wide pull range (+/-200ppm).
• 3.3V operation.
• Available in 3x3 QFN or 16-pin TSSOP packages.


Pinout

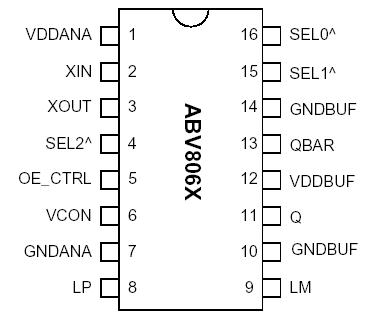

Connection Diagram


Specifications

PARAMETERS SYMBOL MIN. MAX. UNITS
Supply Voltage VDD   4.6 V
Input Voltage, dc VI -0.5 VDD+0.5 V
Output Voltage, dc VO -0.5 VDD+0.5 V
Storage Temperature TS -65 150 °C
Ambient Operating Temperature* TA -40 85 °C
Junction Temperature TJ   125 °C
Lead Temperature (soldering, 10s)     260 °C
ESD Protection, Human Body Model     2 kV
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.


Description

The ABV806X is a monolithic low jitter and low phase noise VCXO, capable of 0.4ps RMS phase jitter and PECL or LVDS outputs, covering a wide frequency output range up to 640MHz. It allows the control of the output frequency with an input voltage (VCON), using a low cost crystal.

The ABV806X is designed to address the demanding requirements of high performance applications such as SONET, GPS, Video, etc.
