ABV8037

Features: • Less than 0.4ps RMS (12KHz-20MHz) phase jitter for all frequencies.• Less than 25ps (typ.) peak to peak jitter for all frequencies.• Low phase noise output (@ 1MHz frequency offset-144dBc/Hz for 155.52MHz-140dBC/Hz for 311.04MHz• 19MHz-40MHz crystal input.•...

product image

ABV8037 Picture
See larger image
SeekIC No. : 004264355 Detail

ABV8037: Features: • Less than 0.4ps RMS (12KHz-20MHz) phase jitter for all frequencies.• Less than 25ps (typ.) peak to peak jitter for all frequencies.• Low phase noise output (@ 1MHz freq...

ABV8037 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ABV8037
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Less than 0.4ps RMS (12KHz-20MHz) phase jitter for all frequencies.
• Less than 25ps (typ.) peak to peak jitter for all frequencies.
• Low phase noise output (@ 1MHz frequency offset
 -144dBc/Hz for 155.52MHz
 -140dBC/Hz for 311.04MHz
• 19MHz-40MHz crystal input.
• 38MHz-320MHz output.
• Available in PECL, LVDS, or CMOS outputs.
• No external varicap required.
• Output Enable selector.
• Wide pull range (+/-200ppm).
• 3.3V operation.
• Available in 3x3 QFN or 16-pin TSSOP packages.


Pinout

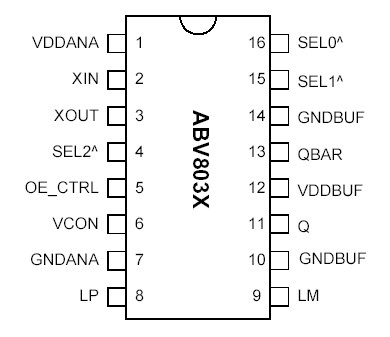

Connection Diagram


Specifications

PARAMETERS
SYMBOL
MIN.
MAX.
UNITS
Supply Voltage
Input Voltage, dc
Output Voltage, dc
Storage Temperature
Ambient Operating Temperature*
Junction Temperature
Lead Temperature (soldering, 10s)
ESD Protection, Human Body Model
VDD
VI
VO
TS
TA
TJ
-0.5
-0.5
-65
-40
4.6
VDD+0.5
VDD+0.5
150
85
125
260
2
V
V
V
°C
°C
°C
°C
kV

Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above the operational limits noted in this specification is not implied.
* Note: Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.




Description

The ABV803X is a monolithic low jitter and low phase noise VCXO, capable of 0.4ps RMS phase jitter and CMOS, LVDS, or PECL outputs, covering a wide frequency output range up to 320MHz. It allows the control of the output frequency with an input voltage (VCON), using a low cost crystal. The frequency selector pads of ABV803X enable output frequencies of (2, 4, 8, or 16) * FXIN. The ABV803X is designed to address the demanding requirements of high performance applications such as SONET, GPS, Video, etc.
