Product Details

Description



Features:

3.8 dB Noise Figure
18 dB Gain
+5 dBm Output Power
Rugged, Reliable Package
Single Voltage Operation
100% RF and DC Testing

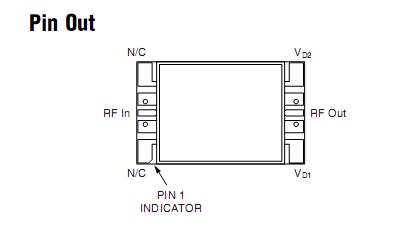

Pinout

Connection Diagram


Specifications

Operating Temperature (T C)............-55°C to +90°C
Storage Temperature (TST )............-65°C to +150°C
Bias Voltage (V D1)...............................................6 VDC
Bias Voltage (V D2)..................................................6 VDC
Power In (PIN )..................................................13 dBm




Description

  The AA038N1-99 is a broadband millimeterwave amplifier in a rugged package.The amplifier is designed for use in millimeterwave communication and sensor systems as the receiver front-end or transmitter gain stage when high gain, wide dynamic range, and low noise figure are required.The robust ceramic and metal package provides excellent electrical performance, excellent thermal performance, and a high degree of environmental protection for long-term reliability.

  A single supply voltage simplifies bias requirements.All amplifiers AA038N1-99 are screened at the operating frequencies prior to shipment for guaranteed performance.Amplifier is targeted for millimeterwave point-to-point and point-to-multipoint wireless communications systems.
