Product Details

Description

Features:

Surface Mount Package
11 dB Gain
24 dBm P_{1 dB}Output Power
100% DC and RF Testing

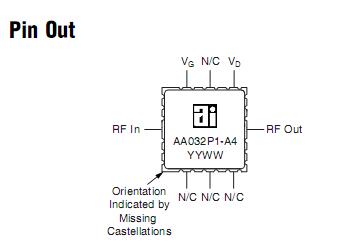

Pinout

Connection Diagram

Specifications

Operating Temperature (T_C)............-55°C to +85°C
Storage Temperature (T_ST )............-65°C to +125°C
Bias Voltage (V_D)................................................7 V_DC
Power In (P_IN ).................................................22 dBm

Description

The AA032P1-A4 is a broadband millimeterwave medium power amplifier in a rugged surface mount package that is compatible with high-volume solder installation.The amplifier is designed for use in millimeterwave communication and sensor systems as an output stage or driver in the transmit chain or LO chain when high gain and high linearity is required.The robust ceramic surface mount package provides excellent electrical performance and a high degree of environmental protection for long-term reliability.

All amplifiers AA032P1-A4 are screened at the operating frequencies prior to shipment for guaranteed performance.Amplifier is targeted for high- volume millimeterwave applications such as point-to-point and point-to-multipoint wireless communications systems and satellite communication systems.
