AA026P2-A4

Features: Surface Mount Package16 dB GainOutput Power22 dBm P1 dBSingle Voltage Operation100% DC and RF TestingPinoutSpecificationsOperating Temperature (T C)............-55°C to +90°C Storage Temperature (TST )............-65°C to +150°CBias Voltage (V D).............................................

product image

AA026P2-A4 Picture
SeekIC No. : 004260846 Detail

AA026P2-A4: Features: Surface Mount Package16 dB GainOutput Power22 dBm P1 dBSingle Voltage Operation100% DC and RF TestingPinoutSpecificationsOperating Temperature (T C)............-55°C to +90°C Storage Tempe...

floor Price/Ceiling Price

Part Number:
AA026P2-A4
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Surface Mount Package
16 dB Gain
Output Power
22 dBm P1 dB
Single Voltage Operation
100% DC and RF Testing

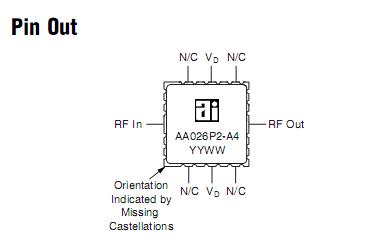

Pinout

  Connection Diagram


Specifications

Operating Temperature (T C)............-55°C to +90°C
Storage Temperature (TST )............-65°C to +150°C
Bias Voltage (V D)................................................7 VDC
Power In (PIN ).................................................22 dBm





Description

  The AA026P2-A4 is a broadband millimeterwave medium power amplifier in a rugged surface mount package that is compatible with high-volume solder installation.The amplifier is designed for use in millimeterwave communication and sensor systems as an output stage or driver in the transmit chain or LO chain when high gain and high linearity is required.The robust ceramic surface mount package provides excellent electrical performance and a high degree of environmental protection for long-term reliability

  All amplifiers AA026P2-A4 are screened at the operating frequencies prior to shipment for guaranteed performance.Amplifier is targeted for high- volume millimeterwave applications such as point-to-point and point-to-multipoint wireless communications systems.
