A43L8316A

Features: JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address RAS Dual banks / Pulse MRS cycle with address key programs- CAS Latency (2,3)- Burst Length (1,2,4,8 & full page) - Burst Type (Sequential & Interleave) All inputs are sampled at the positive going edge of...

product image

A43L8316A Picture
See larger image
SeekIC No. : 004260334 Detail

A43L8316A: Features: JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address RAS Dual banks / Pulse MRS cycle with address key programs- CAS Latency (2,3)- Burst Length (1,2,4,8 & full p...

A43L8316A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
A43L8316A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

JEDEC standard 3.3V power supply
LVTTL compatible with multiplexed address RAS
Dual banks / Pulse
MRS cycle with address key programs
- CAS Latency (2,3)
- Burst Length (1,2,4,8 & full page)
- Burst Type (Sequential & Interleave)
All inputs are sampled at the positive going edge of the system clock
Burst Read Single-bit Write operation
DQM for masking
Auto & self refresh
16ms refresh period (1K cycle)
50 Pin TSOP (II)

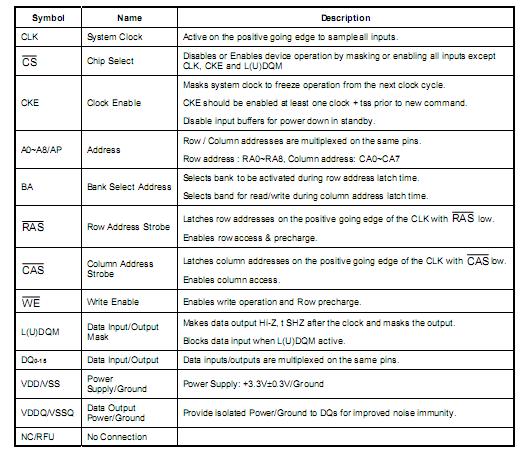

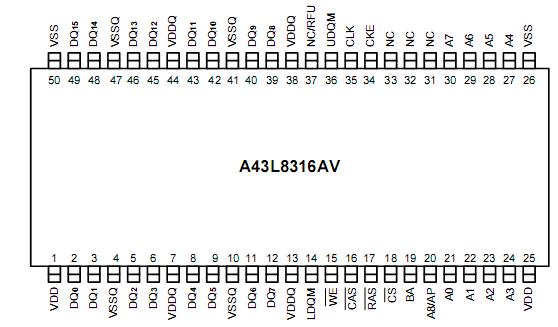

Pinout

Connection Diagram Connection Diagram


Specifications

Voltage on any pin relative to VSS (Vin, Vout )  . . . . . . . . .
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . -1.0V to +4.6V
Voltage on VDD supply relative to VSS (VDD, VDDQ )
 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-1.0V to +4.6V
Storage Temperature (TSTG) . . . . . . . . . .     -55C to +150C
Soldering Temperature X Time (TSLODER) . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    260C X 10sec
Power Dissipation (PD) . . . . . . . . . . . . . . . . . . . . . . . . .  1W
Short Circuit Current (Ios) . . . . . .  . . . . . . . . . . . . . .  50mA





Description

The A43L8316A is 4,194,304 bits synchronous high data rate Dynamic RAM organized as 2 X 131,072 words by 16 bits, fabricated with AMICs high  performance CMO technology. Synchronous design allows precise cycle control with the use of system clock. I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable latencies allows the same device to be useful for a variety of high bandwidth, high performance memory system applications.
