A23L3616

Features: 8M x 16 bit or 16M x 8 bit organizationSupply voltage range: 2.7V~3.6VAccess time: 100ns (max.)/3.0V~3.6V 120ns (max.)/2.7V~3.6VCurrent: Operating: 40mA (typ.)/3.3V Standby: 10µA (typ.)/3.3VThree-state outputs for wired-OR expansionFull static operationAll inputs and outputs are di...

product image

A23L3616 Picture
See larger image
SeekIC No. : 004259959 Detail

A23L3616: Features: 8M x 16 bit or 16M x 8 bit organizationSupply voltage range: 2.7V~3.6VAccess time: 100ns (max.)/3.0V~3.6V 120ns (max.)/2.7V~3.6VCurrent: Operating: 40mA (typ.)/3.3V Standby: 10µA (ty...

A23L3616 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
A23L3616
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

8M x 16 bit or 16M x 8 bit organization
Supply voltage range: 2.7V~3.6V
Access time: 100ns (max.)/3.0V~3.6V
120ns (max.)/2.7V~3.6V
Current: Operating: 40mA (typ.)/3.3V
Standby: 10µA (typ.)/3.3V
Three-state outputs for wired-OR expansion
Full static operation
All inputs and outputs are directly TTL-compatible
Available in 44-pin SOP, 48-pin TSOP (forward, reverse type and flash memory's pinouts compatible) packages
Pinout compatible with flash type (A23L36161)

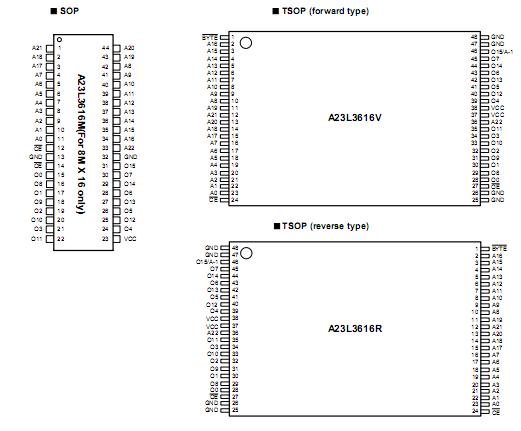

Pinout

Connection Diagram




Specifications


Ambient Operating Temperature . . . . . . .0°C to + 70°C
Storage Temperature . . . . . . . . . . . . .-65°C to + 125°C
Output Voltage . . . . . . . . . . . . . . . . . -0.5V to VCC + 0.5V
Input Voltage . . . . . . . . . . . . . . . . . .-0.5V to VCC + 0.5V
