A23L06162

Features: 1M x 16 bit or 2M x 8 bit organization Supply voltage range: 2.7V~3.6V Access time: 70 ns (max.)/2.7V~3.6V Current: Operating: 40mA (typ.)/3.3V Standby: 10µA (typ.)/3.3V Three-state outputs for wired-OR expansion Full static operation All inputs and outputs are directly TTL-compati...

product image

A23L06162 Picture
See larger image
SeekIC No. : 004259949 Detail

A23L06162: Features: 1M x 16 bit or 2M x 8 bit organization Supply voltage range: 2.7V~3.6V Access time: 70 ns (max.)/2.7V~3.6V Current: Operating: 40mA (typ.)/3.3V Standby: 10µA (typ.)/3.3V Three-state ...

A23L06162 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
A23L06162
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1M x 16 bit or 2M x 8 bit organization
Supply voltage range: 2.7V~3.6V
Access time: 70 ns (max.)/2.7V~3.6V
Current: Operating: 40mA (typ.)/3.3V
Standby: 10µA (typ.)/3.3V
Three-state outputs for wired-OR expansion
Full static operation
All inputs and outputs are directly TTL-compatible
Flash memory pinout compatible with AMD (A23L06161) and Intel (A23L06162)
Available in 44-pin SOP, 48-pin TSOP (forward, reverse type and flash memory's pinouts compatible) packages






Pinout

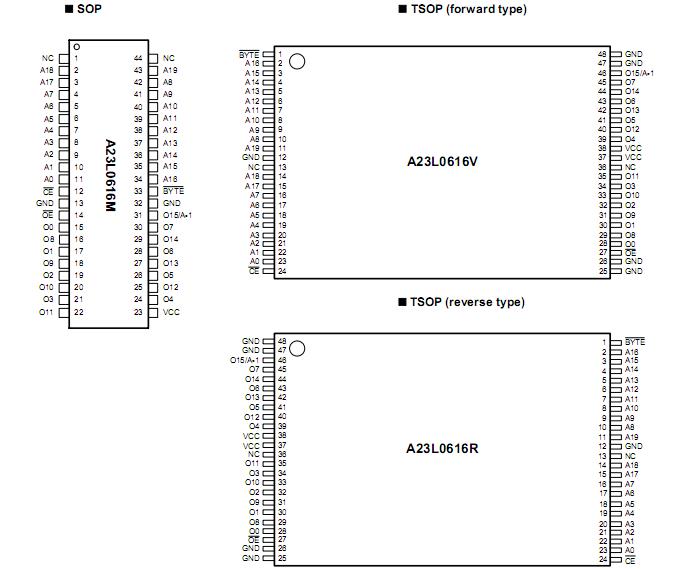

Connection Diagram




Specifications

Ambient Operating Temperature . . . . . . . 0°C to + 70°C
Storage Temperature . . . . . . . . . . . . . -65°C to + 125°C
Output Voltage . . . . . . . . . . . . . . . . . -0.5V to VCC + 0.5V
Input Voltage . . . . . . . . . . . . . . . . . . -0.5V to VCC + 0.5V
