908E626

Features:

High-Performance M68HC08EY16 Core
16K Bytes of On-Chip Flash Memory
512 Bytes of RAM
Internal Clock Generation Module
Two 16-Bit, 2-Channel Timers
10-Bit Analog-to-Digital Converter
Four Low R_DS(ON) Half-Bridge Outputs
13 Microcontroller I/Os

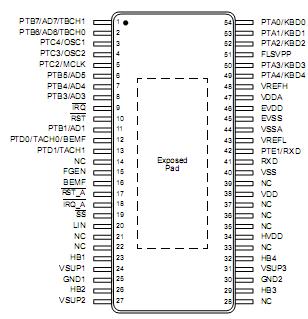

Pinout




Specifications

Rating	Symbol	Value	Unit
ELECTRICAL RATINGS
Supply Voltage Analog Chip Supply Voltage under Normal Operation (Steady-State) Analog Chip Supply Voltage under Transient Conditions (Note 1) Microcontroller Chip Supply Voltage	VSUP(SS) VSUP(PK) VDD	-0.3 to 28 -0.3 to 40 -0.3 to 6.0	V
Input Terminal Voltage Analog Chip Microcontroller Chip	VIN(ANALOG) VIN(MCU)	-0.3 to 5.5 VSS-0.3 to VDD+0.3	V
Maximum Microcontroller Current per Terminal All Terminals Except VDD, VSS, PTA0:PTA6, PTC0:PTC1 Terminals PTA0:PTA6, PTC0:PTC1	IPIN(1) IPIN(2)	±15 ±25	mA
Maximum Microcontroller VSS Output Current	IMVSS	100	mA
Maximum Microcontroller VDD Input Current	IMVDD	100	mA
LIN Supply Voltage Normal Operation (Steady-State) Transient Conditions (Note 1)	VBUS(SS) VBUS(DYNAMIC)	-18 to 28 40	V
ESD Voltage Human Body Model (Note 2) Machine Model (Note 3) Charge Device Model (Note 4)	VESD1 VESD2 VESD3	±3000 ±150 ±500	V
THERMAL RATINGS
Storage Temperature	TSTG	-40 to 150	°C
Operating Case Temperature (Note 5)	TC	-40 to 115	°C
Operating Junction Temperature Analog MCU (Note 6)	TJ(ANALOG) TJ(MCU)	-40 to 150 -40 to 135	°C
Peak Package Reflow Temperature During Solder Mounting (Note 7)	TSOLDER	245	°C
Thermal Resistance (Junction to Ambient) All Outputs ON (Note 8), (Note 10) Single Output ON (Note 9), (Note 10)	RJA1 RJA2	24 27	°C/W

Description

The 908E626 is an integrated single-package solution that includes a high performance HC08 microcontroller with a SMARTMOS^TM  analog control IC. The HC08 includes flash memory, a timer, enhanced serial communications  interface (ESCI), an analog-to-digital converter (ADC), serial peripheral  interface (SPI) (only internal), and an internal clock generator (ICG) module. The analog control die of 908E626 provides fully protected H-Bridge outputs, voltage  regulator, autonomous watchdog, and local interconnect network (LIN)  physical layer.

The single-package solution, together with LIN, provides optimal  application performance adjustments and space-saving PCB design. 908E626 is well suited for the control of automotive stepper applications like climate control  and light-levelling.
