87C196JT

Features:

 -40 to +125 Ambient
High Performance CHMOS 16-Bit CPU
Up to 48 Kbytes of On-Chip EPROM
Up to 1.5 Kbytes of On-Chip Register RAM
Up to 512 Bytes of Additional RAM (Code RAM)
Register-Register Architecture
Up to 8 Channel/10-Bit A/D with Sample/Hold
Up to 37 Prioritized Interrupt Sources
Up to Seven 8-Bit (56) I/O Ports
Full Duplex Serial I/O Port
Dedicated Baud Rate Generator
Interprocessor Communication Slave Port
High Speed Peripheral Transaction Server (PTS)
Two 16-Bit Software Timers
10 High Speed Capture/Compare (EPA)
Full Duplex Synchronous Serial I/O Port (SSIO)
Two Flexible 16-Bit Timer/Counters
Quadrature Counting Inputs
Flexible 8-/16-Bit External Bus
Programmable Bus (HLD/HLDA)
1.75 ms 16 x 16 Multiply
3 ms 32/16 Divide
68-Pin and 52-Pin PLCC Packages

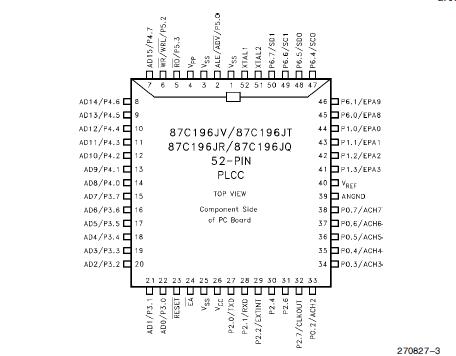

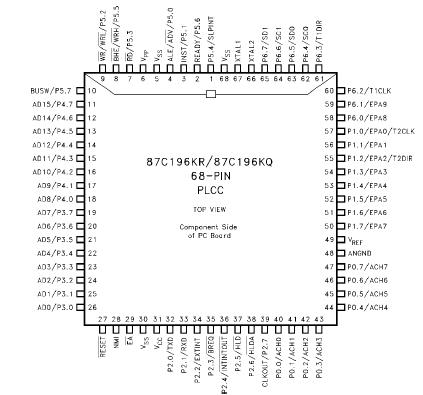

Pinout




Specifications

Storage Temperature ..............................-60to +150
Voltage from V_PP or EA to
V_SS or ANGND.........................................-0.5V to +13.0V
Voltage from Any Other Pin
to V_SS or ANGND .....................................-0.5V to +7.0V
This includes V_PP on ROM and CPU devices.
Power Dissipation...................................................0.5W

NOTICE: This is a production data sheet. The specifications are subject to change without notice.

*WARNING: Stressing the device beyond the ``Absolute Maximum Ratings'' may cause permanent damage. These are stress ratings only. Operation beyond the ``Operating Conditions'' is not recommended and extended exposure beyond the ``Operating Conditions'' may affect device reliability.


Description

The 87C196KR/KQ JV/JT JR/JQ devices represent the fourth generation of MCSÉ 96 Microcontroller products implemented on Intel's advanced 1 micron process technology. These products are based on the 80C196KB device with improvements for automotive applications. The instruction set is a true super set of 80C196KB. The 87C196JR is a 52-pin version of the 87C196KR device, while the 87C196KQ/JQ are memory scalars of the 87C196KR/JR.

The 87C196JV/JT A-step devices (JV-A, JT-A) are the newest members of the MCS 96 microcontroller family. These devices are memory scalars of the 87C196JR D-step (JR-D) and are designed for strict functional and electrical compatibility. The JT-A has 32 Kbytes of on-chip EPROM, 1.0 Kbytes of Register RAM and 512 bytes of Code RAM. The JV-A has 48 Kbytes of on-chip EPROM, 1.5 Kbytes of Register RAM and 512 bytes of Code RAM.
