87C196CA

Features: High Performance CHMOS 16-Bit CPU (up to 20 MHz Operation)Register-Register ArchitectureUp to 56 Kbytes of On-Chip EPROMUp to 15 Kbyte of On-Chip Register RAMUp to 512 Bytes of Additional RAM (Code RAM)Up to 16 Mbyte Linear Address SpaceSupports CAN (Controller Area Network) Specificatio...

product image

87C196CA Picture
See larger image
SeekIC No. : 004257123 Detail

87C196CA: Features: High Performance CHMOS 16-Bit CPU (up to 20 MHz Operation)Register-Register ArchitectureUp to 56 Kbytes of On-Chip EPROMUp to 15 Kbyte of On-Chip Register RAMUp to 512 Bytes of Additional ...

87C196CA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
87C196CA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High Performance CHMOS 16-Bit CPU (up to 20 MHz Operation)
Register-Register Architecture
Up to 56 Kbytes of On-Chip EPROM
Up to 15 Kbyte of On-Chip Register RAM
Up to 512 Bytes of Additional RAM (Code RAM)
Up to 16 Mbyte Linear Address Space
Supports CAN (Controller Area Network) Specification 20
15 Message Objects of 8 Bytes Data Length
10-Bit AD with SampleHold
38 Prioritized Interrupts
Up to Seven 8-Bit (60) IO Ports
Full Duplex Serial Port (SIO) with Dedicated Baudrate Generator
Full Duplex Synchronous Serial IO Port (SSIO)
Interprocessor Communication Slave Port
Selectable Bus Timing Modes for Flexible Interfacing
Oscillator Fail Detection Circuitry
High Speed Peripheral Transaction Server (PTS)
Two Dedicated 16-Bit High-Speed Compare Registers
High Speed CaptureCompare (EPA)
Two Flexible 16-Bit Timer Counters
Flexible 8-16-Bit External Bus (Programmable)
Programmable Bus (HLDHLDA)
14 ms 16 x 16 Multiply
24 ms 3216 Divide


Pinout

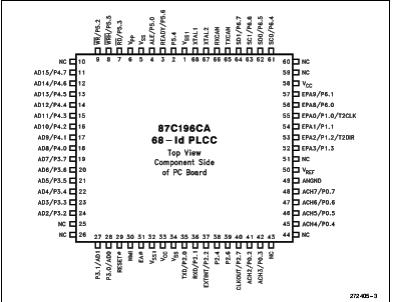

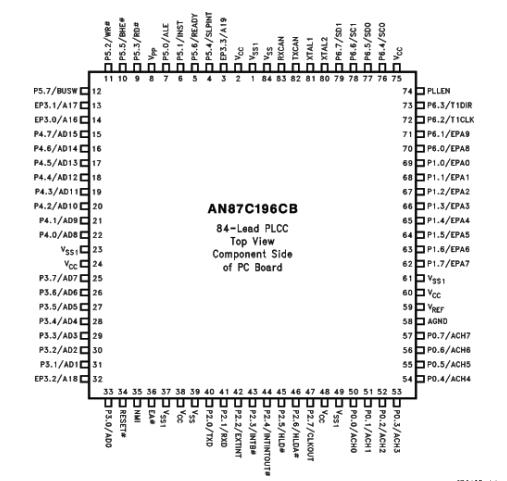

Connection Diagram Connection Diagram Connection Diagram


Specifications

Storage Temperature ..........................-60to+ 150
Voltage from VPP or EA to
    VSS orANGND.................................. -0.5V to+ 13.0V
Voltage from Any Other Pin
    to VSS or ANGND................................. -0.5 to +7.0V
    This includes VPP on ROM and CPU devices
Power Dissipation................................................1.0W

NOTICE This data sheet contains information on products in the sampling and initial production phases of development The specifications are subject to change without notice Verify with your local Intel Sales office that you have the latest data sheet be- fore finalizing a design

WARNING Stressing the device beyond the ''Absolute Maximum Ratings'' may cause permanent damage These are stress ratings only Operation beyond the ''Operating Conditions'' is not recommended and ex- tended exposure beyond the ''Operating Conditions'' may affect device reliability
