Features:

`n HIGH SPEED: tPD = 4.5 ns (TYP.) at VCC = 5V
` LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25
` COMPATIBLE WITH TTL OUTPUTS: VIH = 2V (MIN.), VIL = 0.8V (MAX)
` POWER DOWN PROTECTION ON INPUTS & OUTPUTS
` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN)
` BALANCED PROPAGATION DELAYS: tPLH  tPHL
` OPERATING VOLTAGE RANGE: VCC(OPR) = 4.5V to 5.5V
` IMPROVED LATCH-UP IMMUNITY
` LOW NOISE: VOLP = 0.9V (MAX.)


Pinout

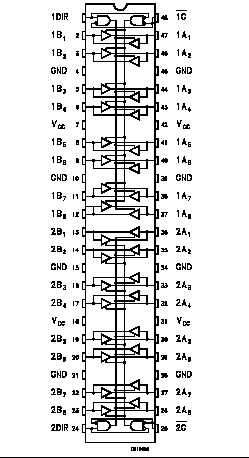

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7.0
V
VI
 DC Input Voltage
-0.5 to +7.0
V
VI/O
 DC BUS I/O Voltage (see note 1)
-0.5 to +7.0
V
VI/O
 DC BUS I/O Voltage (see note 2)
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
- 20
mA
IOK
 DC Output Diode Current
± 20
mA
IO
 DC Output Current
±25
mA
ICC or IGND
 DC VCC or Ground Current
±75
mA
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
300
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional
operation under these conditions is not implied

1) Output in OFF State
2) High or Low State


Description

The 74VHCT16245A is an advanced high-speed CMOS 16-BIT BUS TRANSCEIVER (3-STATE) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

This IC is intended for two-way asynchronous communication between data busses; the direction of data transmission is determined by DIR input. The enable input G can be used to disable the device so that the busses are
effectively isolated.

All inputs and outputs of the 74VHCT16245A are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.

All floating bus terminals of the 74VHCT16245A during High Z State must be held HIGH or LOW.
