74VHCT16244A

Features: ` HIGH SPEED: tPD = 5.4 ns (TYP.) at VCC = 5V` LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25` COMPATIBLE WITH TTL OUTPUTS: VIH =2V (MIN.) VIL = 0.8 (MAX.)` POWER DOWN PROTECTION ON INPUTS` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN)` BALANCED PROPAGATION DELAYS: tPLH tPHL` O...

product image

74VHCT16244A Picture
See larger image
SeekIC No. : 004251917 Detail

74VHCT16244A: Features: ` HIGH SPEED: tPD = 5.4 ns (TYP.) at VCC = 5V` LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25` COMPATIBLE WITH TTL OUTPUTS: VIH =2V (MIN.) VIL = 0.8 (MAX.)` POWER DOWN PROTECTION ON INPU...

74VHCT16244A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74VHCT16244A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` HIGH SPEED: tPD = 5.4 ns (TYP.) at VCC = 5V
` LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25
` COMPATIBLE WITH TTL OUTPUTS: VIH =2V (MIN.) VIL = 0.8 (MAX.)
` POWER DOWN PROTECTION ON INPUTS
` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN)
` BALANCED PROPAGATION DELAYS: tPLH  tPHL
` OPERATING VOLTAGE RANGE: VCC(OPR) = 4.5V to 5.5V
` PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 16244
` IMPROVED LATCH-UP IMMUNITY
` LOW NOISE: VOLP = 0.9V (MAX.)



Pinout

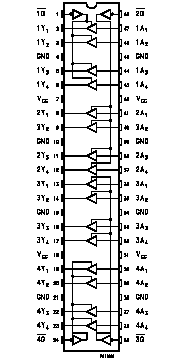

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7.0
V
VI
 DC Input Voltage
-0.5 to +7.0
V
VO
 DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
- 20
mA
IOK
 DC Output Diode Current
± 20
mA
IO
 DC Output Current
±25
mA
ICC or IGND
 DC VCC or Ground Current
±75
mA
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
300
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional
operation under these conditions is not implied




Description

The 74VHCT16244A is an advanced high-speed CMOS 16-BIT BUS BUFFER (3-STATE) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS tecnology.

Any nG output control governs four BUS BUFFERS. Output Enable inputs (nG) tied together give full 16 bit operation.

When nG is LOW, the outputs are enabled. When nG is HIGH, the output are in high impedance state.

The 74VHCT16244A is designed to be used with 3-state memory address drivers, etc. Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V.

All inputs and outputs of the 74VHCT16244A are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
