74VHCT16240A

Features: ` HIGH SPEED: tPD = 5.6 ns (TYP.) at VCC = 5V` LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25` COMPATIBLE WITH TTL OUTPUTS: VIH = 2V (MIN.), VIL = 0.8V (MAX)` POWER DOWN PROTECTION ON INPUTS & OUTPUTS` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN)` BALANCED PROPAGATION DELA...

product image

74VHCT16240A Picture
See larger image
SeekIC No. : 004251916 Detail

74VHCT16240A: Features: ` HIGH SPEED: tPD = 5.6 ns (TYP.) at VCC = 5V` LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25` COMPATIBLE WITH TTL OUTPUTS: VIH = 2V (MIN.), VIL = 0.8V (MAX)` POWER DOWN PROTECTION ON IN...

74VHCT16240A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74VHCT16240A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` HIGH SPEED: tPD = 5.6 ns (TYP.) at VCC = 5V
` LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25
` COMPATIBLE WITH TTL OUTPUTS: VIH = 2V (MIN.), VIL = 0.8V (MAX)
` POWER DOWN PROTECTION ON INPUTS & OUTPUTS
` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN)
` BALANCED PROPAGATION DELAYS: tPLH  tPHL
` OPERATING VOLTAGE RANGE: VCC(OPR) = 4.5V to 5.5V
` IMPROVED LATCH-UP IMMUNITY
` LOW NOISE: VOLP = 0.9V (MAX.)


Pinout

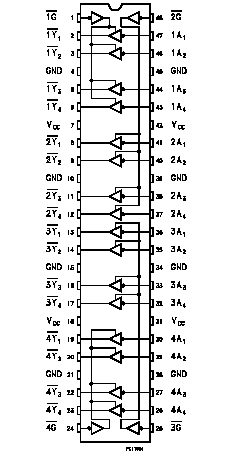

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7.0
V
VI
 DC Input Voltage
-0.5 to +7.0
V
VO
 DC Output Voltage (see note 1)
-0.5 to +7.0
V
VO
 DC Output Voltage (see note 2)
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
- 20
mA
IOK
 DC Output Diode Current
± 20
mA
IO
 DC Output Current
±25
mA
ICC or IGND
 DC VCC or Ground Current
±50
mA
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
300
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional
operation under these conditions is not implied

1) Output in OFF State
2) High or Low State


Description

The 74VHCT16240A is an advanced high-speed CMOS 16-BIT BUS BUFFER (3-STATE) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

Any nG output control governs four BUS BUFFERS. Output Enable inputs (nG) tied together give full 16 bit operation.

When nG is LOW, the outputs are on. When nG is HIGH, the output are in high impedance state.

This 74VHCT16240A is designed to be used with 3 state memory address drivers, etc. Power down protection is provided on all inputs and outputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V since all inputs are equipped with TTL threshold

All inputs and outputs of the 74VHCT16240A are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
