74VHCT00A

Features:

High speed: t_PD=5.0 ns (typ) at T_A =25°C
High noise immunity: V_IH= 2.0V, V_IL=0.8V
Power down protection is provided on all inputs and outputs
Low noise: V_OLP = 0.8V (max)
Low power dissipation: I_CC = 2 A (max) at T_A = 25°C
Pin and function compatible with 74HCT00

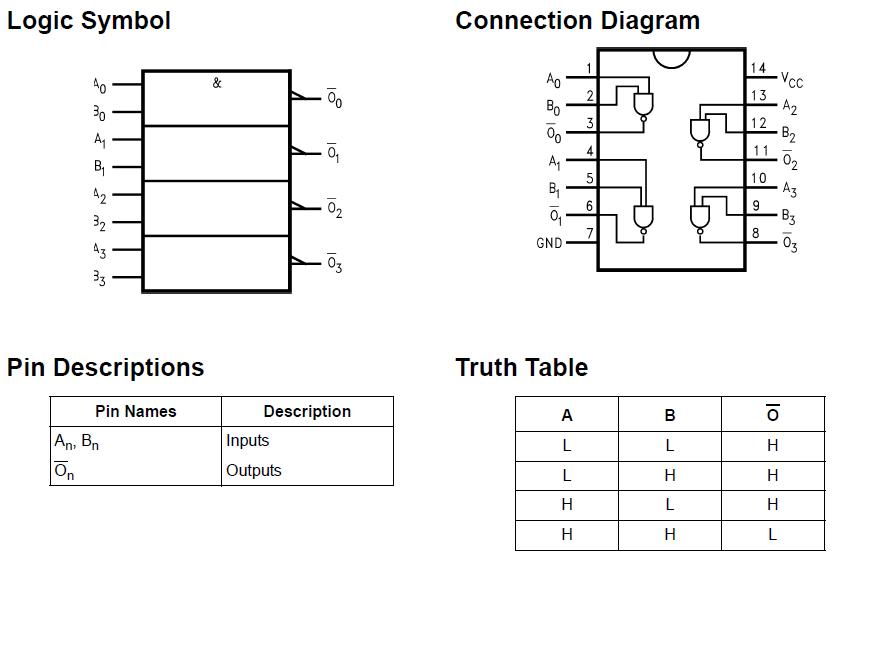

Pinout




Specifications

Supply Voltage (V_CC) ................................................................-0.5V to +7.0V
DC Input Voltage (V_IN) .............................................................-0.5V to +7.0V
DC Output Voltage (V_OUT)
(Note 3)...............................................................................-0.5V to V_CC+7.0V
(Note 4)...................................................................................-0.5V to  + 0.5V
Input Diode Current (I_IK).......................................................................-20 mA
Output Diode Current (I_OK)
(Note 5) ...............................................................................................±20 mA
DC Output Current (I_OUT).....................................................................±25 mA
DC V_CC/GND Current (I_CC)....................................................................±50 mA
Storage Temperature (T_STG)..................................................-65°C to +150°C
Lead Temperature (T_L)
(Soldering, 10 seconds) .........................................................................260°C


Description

The 74VHCT00A is an advanced high-speed CMOS 2-Input NAND Gate fabricated with silicon gate CMOS technology. It achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The internal circuit is composed of 3 stages, including buffer output, which provide high noise immunity and stable output.

Protection circuits of the 74VHCT00A ensure that 0V to 7V can be applied to the input pins without regard to the supply voltage and to the output pins with V_CC =0V. These circuits prevent device destruction due to mismatched supply and input/output voltages. This device can be used to interface 3V to 5V systems and two supply systems such as battery backup.
