74VHC86

Features: HIGHSPEED: tPD = 4.8 ns (TYP.) atVCC= 5V LOWPOWERDISSIPATION: ICC =2 mA (MAX.) at TA =25 oC HIGHNOISEIMMUNITY: VNIH=VNIL =28%VCC (MIN.)POWERDOWN PROTECTIONON INPUTS SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8 mA(MIN)BALANCEDPROPAGATIONDELAYS: tPLH @ tPHL OPERATINGVOLTAGERANGE:VCC (OPR)...

product image

74VHC86 Picture
See larger image
SeekIC No. : 004251900 Detail

74VHC86: Features: HIGHSPEED: tPD = 4.8 ns (TYP.) atVCC= 5V LOWPOWERDISSIPATION: ICC =2 mA (MAX.) at TA =25 oC HIGHNOISEIMMUNITY: VNIH=VNIL =28%VCC (MIN.)POWERDOWN PROTECTIONON INPUTS SYMMETRICAL OUTPUT IMPE...

74VHC86 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74VHC86
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

HIGHSPEED: tPD = 4.8 ns (TYP.) atVCC= 5V
LOWPOWERDISSIPATION: ICC =2 mA (MAX.) at TA =25 oC
HIGHNOISEIMMUNITY: VNIH=VNIL =28%VCC (MIN.)
POWERDOWN PROTECTIONON INPUTS
SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8 mA(MIN)
BALANCEDPROPAGATIONDELAYS: tPLH @ tPHL
OPERATINGVOLTAGERANGE:VCC (OPR)= 2V to 5.5V
PINANDFUNCTION COMPATIBLEWITH74 SERIES86
IMPROVEDLATCH-UP IMMUNITY
LOWNOISE:VOLP = 0.8V(Max.)


Pinout

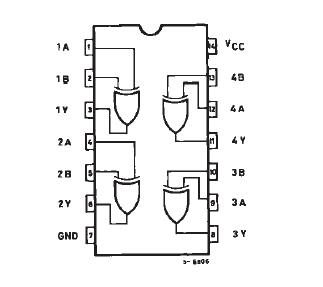

Connection Diagram


Specifications

Symbol
PARAMETER
Value
Unit
VCC
DC Supply Voltage
-0.5to+7.0
V
VI
DC Input Voltage
-0.5to+7.0
V
VO
DC Output Voltage
-0.5toVCC+0.5
V
IIK
DC Input Diode Current
- 20
mA
IOK
DC Output Diode Current
± 25
mA
IO
DC Output Source/Sink Current
± 75
mA
VCC
Lead Temperature (10 sec)
300
°C
VCC
Storage Temperature Range
65 to +150
°C



Description

The 74VHC86 is an advanced high-speed CMOS QUAD EXCLUSIVE OR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V.

All inputs and outputs of the 74VHC86 are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
