74VHC16245

Features: `HIGH SPEED: tPD = 4.0 ns (TYP.) at VCC = 5V`LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25°C`HIGH NOISE IMMUNITY VNIH=VNIL= 28%VCC (MIN.)`POWER DOWN PROTECTION ON INPUTS & OUTPUTS`SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN)`BALANCED PROPAGATION DELAYS: tPLH @ tPHL`OPERAT...

product image

74VHC16245 Picture
See larger image
SeekIC No. : 004251868 Detail

74VHC16245: Features: `HIGH SPEED: tPD = 4.0 ns (TYP.) at VCC = 5V`LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25°C`HIGH NOISE IMMUNITY VNIH=VNIL= 28%VCC (MIN.)`POWER DOWN PROTECTION ON INPUTS & OUTPUTS`S...

74VHC16245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74VHC16245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`HIGH SPEED: tPD = 4.0 ns (TYP.) at VCC = 5V
`LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25°C
`HIGH NOISE IMMUNITY VNIH=VNIL= 28%VCC (MIN.)
`POWER DOWN PROTECTION ON INPUTS & OUTPUTS
`SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8mA (MIN)
`BALANCED PROPAGATION DELAYS: tPLH @ tPHL
`OPERATING VOLTAGE RANGE: VCC(OPR) = 2V to 5.5V
`IMPROVED LATCH-UP IMMUNITY
`LOW NOISE: VOLP = 0.9V (MAX.)


Pinout

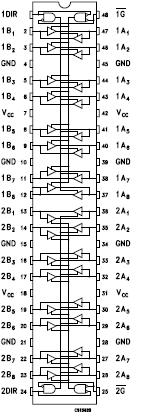

Connection Diagram


Specifications

SYMBOL PARAMETER Value UNIT
VCC Supply voltagee 0.5 to+ 7.0 V
VI DC Input Voltage(DIR, G) 0.5 to+ 7.0 V
VI/O Bus I/O Voltage -0.5 to VCC + 0.5 V
VO DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current - 20 mA
IOK DC Output Diode Current ± 20 mA
IO DC Output Current ±25 mA
ICC or IGND DC VCC or Ground Current ± 75 mA
Tstg Storage temperature 65 to 150

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied


Description

The 74VHC16245 is an advanced high-speed CMOS 16-BIT BUS TRANSCEIVER (3-STATE) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

This IC is intended for two-way asynchronous communication between data busses; the direction of data transmission is determined by DIR input. The enable input G can be used to disable the device so that the busses are effectively isolated.

All inputs and outputs of the 74VHC16245 are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.

All floating bus terminals during High Z State must be held HIGH or LOW.
