74VHC126

Features: `HIGHSPEED: tPD = 3.8 ns (TYP.) atVCC= 5V`LOWPOWERDISSIPATION: ICC =4 A (MAX.) at TA =25 `HIGHNOISEIMMUNITY: VNIH=VNIL =28%VCC (MIN.)`POWERDOWN PROTECTIONON INPUTS`SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8 mA(MIN)`BALANCEDPROPAGATIONDELAYS: tPLH @ tPHL`OPERATINGVOLTAGERANGE: VCC (OPR...

product image

74VHC126 Picture
See larger image
SeekIC No. : 004251857 Detail

74VHC126: Features: `HIGHSPEED: tPD = 3.8 ns (TYP.) atVCC= 5V`LOWPOWERDISSIPATION: ICC =4 A (MAX.) at TA =25 `HIGHNOISEIMMUNITY: VNIH=VNIL =28%VCC (MIN.)`POWERDOWN PROTECTIONON INPUTS`SYMMETRICAL OUTPUT IMPED...

74VHC126 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74VHC126
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`HIGHSPEED: tPD = 3.8 ns (TYP.) atVCC= 5V
`LOWPOWERDISSIPATION: ICC =4 A (MAX.) at TA =25
`HIGHNOISEIMMUNITY: VNIH=VNIL =28%VCC (MIN.)
`POWERDOWN PROTECTIONON INPUTS
`SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 8 mA(MIN)
`BALANCEDPROPAGATIONDELAYS: tPLH @ tPHL
`OPERATINGVOLTAGERANGE: VCC (OPR)= 2V to 5.5V
`PINANDFUNCTION COMPATIBLEWITH 74 SERIES126
`IMPROVEDLATCH-UP IMMUNITY
`LOWNOISE:VOLP = 0.8V(Max.)


Pinout

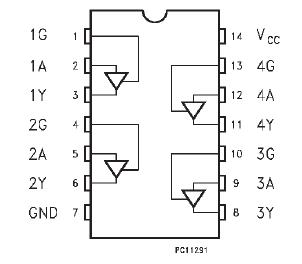

Connection Diagram


Specifications

SYMBOL PARAMETER Value UNIT
VCC Supply voltagee 0.5 to+ 7 V
VI DC Input Voltage 0.5 to+ 7 V
VO DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current - 20 mA
IOK DC Output Diode Current ± 20 mA
IO DC Output Current ±25 mA
ICC or IGND DC VCC or Ground Current ± 50 mA
Tstg Storage temperature 65 to 150

TL		 Lead Temperature (10 sec) 300

AbsoluteMaximumRatingsarethose values beyond whichdamage to the device may occur. Functional operation under these condition isnot implied.


Description

The 74VHC126 is an advanced high-speed CMOS QUAD BUS BUFFERS fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

This device requires the 3-STATE control input G to be set low to place the output into the high impedance state.

Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V.

All inputs and outputs of the 74VHC126 are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
