`Input and output interface capability to systems at 5V V CC
`Bushold data inputs eliminate the need for external pullup resistors to hold unused inputs
`Live insertion/extraction permitted
`Power Up/Power Down high impedance provides glitchfree bus loading
`Outputs include equivalent series resistance of 25 to make external termination resistors unnecessary and reduce overshoot and undershoot
`ESD performance: Human-body model > 2000V Machine model > 200V Charged-device model > 1000V
`Packaged in plastic Fine-Pitch Ball Grid Array (FBGA) (Preliminary)
Symbol |
Parameter |
Value |
Conditions |
Units |
VCC |
Supply Voltage |
−0.5 to +4.6 |
V | |
VI |
DC Input Voltage |
−0.5 to +7.0 |
V | |
VO |
Output Voltage |
−0.5 to +7.0 |
Output in 3-STATE |
V |
−0.5 to +7.0 |
Output in HIGH or LOW State (Note 4) | |||
IIK |
DC Input Diode Current |
−50 |
VI < GND |
mA |
IOK |
DC Output Diode Current |
−50 |
VO < GND |
mA |
IO |
DC Output Current |
64 |
VO > VCC Output at HIGH State |
mA |
128 |
VO > VCC Output at LOW State | |||
ICC |
DC Supply Current per Supply Pin |
±64 |
mA | |
IGND |
DC Ground Current per Ground Pin |
±128 |
mA | |
TSTG |
Storage Temperature |
−65 to +150 |
°C |
Note 2: Absolute Maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolute maximum rated conditions is not implied. Note 3: IO Absolute Maximum Rating must be observed.

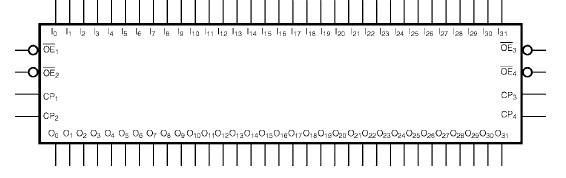

The 74LVTH322374 contains thirty-two non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 32-bit operation.
The 74LVTH322374 is designed with equivalent 25 series resistance in both the HIGH and LOW states of the output. This design reduces line noise in applications such as memory address drivers, clock drivers, and bus transceivers/ transmitters.
The 74LVTH322374 data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs.
These flip-flops are designed for low voltage (3.3V) V CC applications, but with the capability to provide a TTL interface to a 5V environment. The 74LVTH322374 is fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining a low power dissipation.
