Features:

16-bit universal bus interface
3-state buffers
Output capability: from +64 mA to−32 mA
TTL input and output switching levels
Input and output interface capability to systems at 5 V supply
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused
    inputs
Live insertion and extraction permitted
No bus-current loading when output is tied to 5 V bus
Power-up reset
Power-up 3-state
Latch-up protection exceeds 500 mA per JESD78
ESD protection:
    MIL STD 883 Method 3015: exceeds 2000 V
    Machine model: exceeds 200V



Pinout

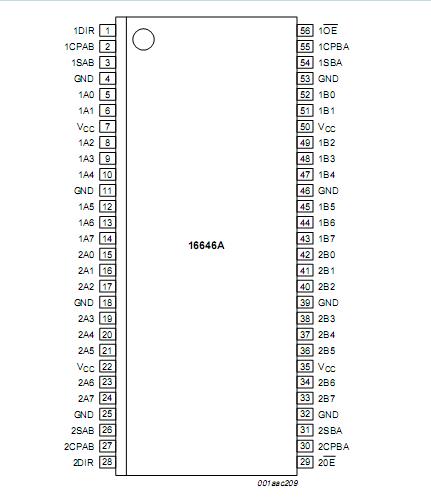

Connection Diagram


Description

The 74LVT16646A is a high-performance BiCMOS product designed for VCC operationat 3.3 V. This device is a 16-bit transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The control function implementation minimizes external timing requirements. The device features an output enable (OE ) input for easy cascading and a direction (DIR) input for direction control.

Data of the 74LVT16646A on bus Aorbus Bisclockedin to there gisters on the LOW-to-HIGH transition of the appropriate clock (CPAB or CPBA). The select control (SAB and SBA) inputs can multiplex stored and real-time (transparent mode data).
