74LVT16646

Features: Input and output interface capability to systems at 5V VCC Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH16646) Also available without bushold feature (74LVT16646) Live insertion/extraction permitted Power Up/Down high impedance provid...

product image

74LVT16646 Picture
See larger image
SeekIC No. : 004251505 Detail

74LVT16646: Features: Input and output interface capability to systems at 5V VCC Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH16646) Also available without ...

74LVT16646 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVT16646
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Input and output interface capability to systems at 5V VCC
  Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH16646)
  Also available without bushold feature (74LVT16646)
  Live insertion/extraction permitted
  Power Up/Down high impedance provides glitch-free bus loading
  Outputs source/sink −32 mA/+64 mA
  Latch-up conforms to JEDEC JED78
  ESD performance: Human-body model > 2000V Machine model > 200V Charged-device model > 1000V


Pinout

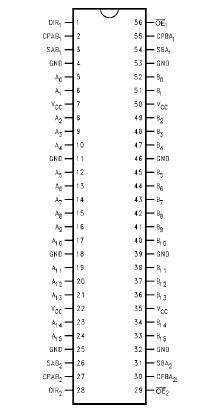

Connection Diagram


Specifications

Symbol
 Parameter
Value
Conditions
Units
VCC
 Supply Voltage
−0.5 to +4.6
V
VI
 DC Input Voltage
−0.5 to +7.0
V
VO
 DC Output Voltage
−0.5 to +7.0
Output in 3-STATE
V
−0.5 to +7.0
Output in HIGH or LOW State (Note 7)
V
IIK
 DC Input Diode Current
−50
VI < GND
mA
IOK
 DC Output Diode Current
−50
VO < GND
mA
IO
 DC Output Current
64
VO > VCC Output at HIGH State
mA
128
VO > VCC Output at LOW State
ICC
 DC Supply Current per Supply Pin
±64
mA
IGND
 DC Ground Current per Ground Pin
±128
mA
TSTG
 Storage Temperature
−65 to +150
°C



Description

The 74LVT16646 contains sixteen noninverting bidirectional registered bus transceivers providing multiplexed transmission of data directly from the input bus or from the internal storage registers. Each byte has separate control inputs which can be shorted together for full 16-bit operation. The DIR inputs determine the direction of data flow through the device. The CPAB and CPBA inputs load data into the registers on the LOW-to-HIGH transition (see Functional Description).

The 74LVT16646 data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs.

These transceivers of the 74LVT16646 are designed for low-voltage (3.3V) VCC applications, but with the capability to provide a TTL interface to a 5V environment. The LVT16646 and LVTH16646 are fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining low power dissipation.
