74LVT16374A

Features:

*16-bit edge-triggered flip-flop
*3-State buffers
*Output capability: +64mA/-32mA
*TTL input and output switching levels
*Input and output interface capability to systems at 5V supply
*Bus-hold data inputs eliminate the need for external pull-up
  resistors to hold unused inputs
*Live insertion/extraction permitted
*Power-up reset
*Power-up 3-State
*No bus current loading when output is tied to 5V bus
*Latch-up protection exceeds 500mA per JEDEC Std 17
*ESD protection exceeds 2000V per MIL STD 883 Method 3015
  and 200V per Machine Model

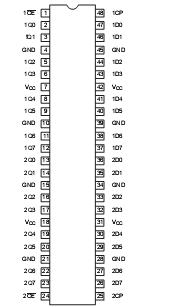

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +4.6	V
IIK	DC input diode current	VI < 0	50	mA
VI	DC input voltage3		-0.5 to +7.0	V
IOK	DC output diode current	VO < 0	50	mA
VOUT	DC output voltage3	output in Off or High state	-0.5 to +7.0	V
IOUT	DC output current	output in Low state	128	mA
		Output in High state	-64
Tstg	Storage temperature range		65 to +150	°C

Description

The 74LVT16374A is a high-performance BiCMOS product designed for V_CC operation at 3.3V.

The 74LVT16374A is a 16-bit edge-triggered D-type flip-flop featuring non-inverting 3-State outputs. The device can be used as two 8-bit flip-flops or one 16-bit flip-flop. On the positive transition of the clock (CP), the Q outputs of the flip-flop take on the logic levels set up at the D inputs.
