Position: Home  > All Categories> Integrated Circuits (ICs) > 74LVT16245B

74LVT16245B

Features: • 16-bit bidirectional bus interface• 3-State buffers• Output capability: +64mA/-32mA• TTL input and output switching levels• Input and output interface capability to systems at 5V supply• Bus-hold data inputs eliminate the need for external pull-up re...

product image

74LVT16245B Picture
See larger image
SeekIC No. : 004251494 Detail

74LVT16245B: Features: • 16-bit bidirectional bus interface• 3-State buffers• Output capability: +64mA/-32mA• TTL input and output switching levels• Input and output interface capab...

74LVT16245B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVT16245B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 16-bit bidirectional bus interface
• 3-State buffers
• Output capability: +64mA/-32mA
• TTL input and output switching levels
• Input and output interface capability to systems at 5V supply
• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
• Live insertion/extraction permitted
• Power-up 3-State
• No bus current loading when output is tied to 5V bus
• Latch-up protection exceeds 500mA per JEDEC Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model




Pinout

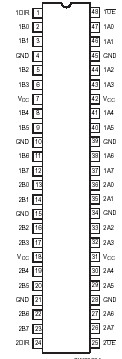

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
RATING
UNIT
VCC
DC supply voltage

0.5 to +4.6
V
IIK
DC input diode current
VI < 0
50

mA

VI
DC input voltage3

0.5 to +7.0
V
IOK
DC output diode current
VO < 0
50
mA
VOUT
DC output voltage3
Output in Off or High state
0.5 to +7.0
V
IOUT
DC output current
Output in Low state
128
mA
Output in High state
64
TSTG
Storage temperature range
65 to +150
°C



Description

The 74LVT16245B is a high-performance BiCMOS product designed for VCC operation at 3.3V.

The 74LVT16245B is a 16-bit transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions. The control function implementation minimizes external timing requirements. The device features an Output Enable (OE) input for easy cascading and a Direction (DIR) input for direction control.




Customers Who Bought This Item Also Bought

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.
You may also be interested in :
Power Supplies - Board Mount
HC-06
PM150RSA060-S81AH0G
Tapes, Adhesives
803
AC452-2
Semiconductor Modules
2DI300A-050-03
7MBR25SA-120-50
Cables, Wires
821-0814-a
415-0100-150
Programmers, Development Systems
ARDUINO IIC/I2C 液晶模块
JTAG-SMT2
Boxes, Enclosures, Racks
ACLSN12
ACLJIC
View more
