Features:

` Input and output interface capability to systems at 5V V_CC
` Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH16245), also available without bushold feature (74LVT16245).
` Live insertion/extraction permitted
` Power Up/Down high impedance provides glitch-free bus loading
` Outputs source/sink 32 mA/64 mA
` Functionally compatible with the 74 series 16245
` Latch-up performance exceeds 500 mA
` ESD performance: Human-body model>2000V Machine model >200V Charged-device >1000V
` Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) (Preliminary)

Pinout

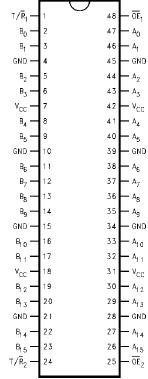

Connection Diagram

Specifications

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Marking Convention**
74LVT16245MEA	Full Production	Green	$1.56	SSOP	48	RAIL	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LVT16245
74LVT16245MEAX	Full Production	Green	$1.56	SSOP	48	TAPE REEL	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LVT16245
74LVT16245MTD	Full Production	RoHS Compliant	$0.69	TSSOP	48	RAIL	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LVT16245
74LVT16245MTDX	Full Production	RoHS Compliant	$0.69	TSSOP	48	TAPE REEL	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: LVT16245

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product 74LVT16245 is available. Click here for more information .

Symbol	Parameter	Value	Conditions	Units
V_CC	Supply Voltage	−0.5 to +4.6		V
V_I	DC Input Voltage	−0.5 to +7.0		V
V_O	Output Voltage	−0.5 to +7.0	Output in 3-STATE	V
V_O	Output Voltage	−0.5 to +7.0	Output in HIGH or LOW State (Note 4)	V
I_IK	DC Input Diode Current	−50	V_I < GND	mA
I_OK	DC Output Diode Current	−50	V_O < GND	mA
I_O	DC Output Current	64	Output at HIGH State, V_O> V_CC	mA
I_O	DC Output Current	128	Output at LOW State, V_O> V_CC	mA
I_CC	DC Supply Current per Supply Pin	±64		mA
I_GND	DC Ground Current per Ground Pin	±128		mA
T_STG	Storage Temperature	−65 to +150

Description

The 74LVT16245 contain sixteen non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. Each byte has separate control inputs which can be shorted together for full 16-bit operation. The T/R# inputs determine the direction of data flow through the device. The OE# inputs disable both the A and B ports by placing them in a high impedance state.

The 74LVT16245 data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs.

These non-inverting transceivers are designed for low-voltage (3.3V) V_CC applications, but with the capability to provide a TTL interface to a 5V environment. The 74LVT16245 are fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining low power dissipation.
