Logic Type: Inverter, Buffer
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Logic Level - High: 2V
Logic Level - Low: 0.8V
Features: 3-State
Number of Circuits: 4
Max Propagation Delay @ V, Max CL: 3.5ns @ 3.3V, 50pF
Number of Inputs: 4
Current - Quiescent (Max): -
Voltage - Supply: 2.7 V ~ 3.6 V
Current - Output High, Low: 32mA, 64mA
Series: 74LVT
Supplier Device Package: 48-TSSOP
Package / Case: 48-TFSOP (0.240", 6.10mm Width)
Packaging: Tape & Reel (TR)
Manufacturer: Fairchild Semiconductor
Features: ` Input and output interface capability to systems at 5V VCC
` Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH16240), also available without bushold feature (74LVT16240)
` Live insertion/extraction permitted
` Power Up/Down high impedance provides glitch-free bus loading
` Outputs source/sink 32 mA/64 mA
` Functionally compatible with the 74 series 16240
` Latch-up performance exceeds 500 mA

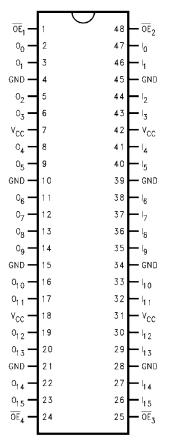

` ESD performance: Human-body model > 2000V Machine model > 200V Charged-device model> 1000VPinout
DescriptionThe 74LVT16240MTDX is one member of the 74LVT16240 family which is designed as the low voltage 16-bit inverting buffer / line driver device that is fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining a low power dissipation.
Features of the 74LVT16240MTDX are:(1)Input and output interface capability to systems at 5V Vcc; (2)Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH16240), also available without bushold feature (74LVT16240); (3)Live insertion/extraction permitted; (4)Power Up/Down high impedance provides glitch-free bus loading; (5)Outputs source / sink -32 mA / +64 mA; (6)Functionally compatible with the 74 series 16240; (7)Latch-up performance exceeds 500 mA; (8)ESD performance: Human-body model > 2000V, Machine model > 200V and Charged-device model > 1000V.
The absolute maximum ratings of the 74LVT16240MTDX can be summarized as:(1)Supply Voltage (Vcc): -0.5 V to +4.6 V;(2)DC Input Voltage (VI): 0.5 V to 7.0 V;(3)Output Voltage (VO): 0.5 V to 7.0 V;(4)DC Input Diode Current (IIK) VI < 0V: -50 mA;(5)DC Output Diode Current (IOK) VO < 0 V: -50 mA;(6)DC Output Source/Sink Current: 64 or 128 mA;(7)DC supply current per supply pin: +/- 64 mA;(8)Storage Temperature Range: -65 to +150 . If you want to know more information about it, please download the datasheet in www.seekic.com or www.chinaicmart.com .
Parameters: | Technical/Catalog Information | 74LVT16240MTDX |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Logic Type | Line Driver, Inverting |
| Package / Case | 48-TSSOP |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 4 |
| Number of Elements | 4 - Quad |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7 V ~ 3.6 V |
| Current - Output High, Low | 32mA, 64mA |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 74LVT16240MTDX
74LVT16240MTDX
|
