Features:

16-bit bus interface
3-State buffers
Output capability: +64mA/-32mA
TTL input and output switching levels
Input and output interface capability to systems at 5V supply
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
Live insertion/extraction permitted
Power-up 3-State
No bus current loading when output is tied to 5V bus
Latch-up protection exceeds 500mA per JEDEC Std 17
ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model


Pinout

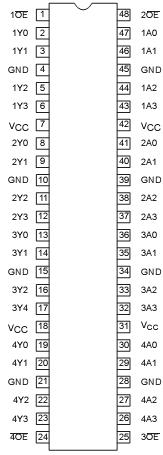

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   -0.5 to +4.6 V
IIK DC input diode current VI < 0
 -50 mA

V I		 DC input voltage3   -0.5 to +7.0 V
I OK DC output diode current VO < 0
 -50 mA

VOUT		 DC output voltage3 Output in Off or High state -0.5 to +7.0 V
IOUT DC output current Output in Low state 128 mA
Output in Low state -64
Tstg Storage temperature range   -65 to +150



Description

The 74LVT16240A is a high-performance BiCMOS product designed for VCC operation at 3.3V. This device is an inverting 16-bit buffer that is ideal for driving bus
lines. The device features four Output Enables (1OE, 2OE, 3OE,4OE), each controlling four of the 3-State outputs.
