Product Details

Description



Features:

` Input and output interface capability to systems at 5V VCC
` Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH16245),also available without bushold feature (74LVT16245).
` Live insertion/extraction permitted
` Power Up/Down high impedance provides glitch-free bus loading
` Outputs source/sink 32 mA/+64 mA
` Functionally compatible with the 74 series 16245
` Latch-up performance exceeds 500 mA
` ESD performance:
   Human-body model >2000V
   Machine model >200V
   Charged-device>1000V
` Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) (Preliminary)


Pinout

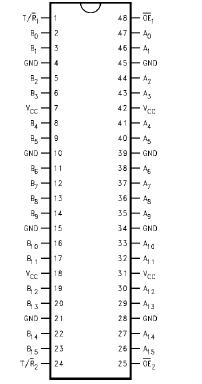

Connection Diagram


Specifications

Symbol
Parameter
Value
Conditions
Units
VCC Supply Voltage
-0.5 to +4.6

V
VI DC Input Voltage
-0.5 to +7.0

V
VO Output Voltage
-0.5 to +7.0
 Output in 3-STATE
V
-0.5 to +7.0
 Output in HIGH or LOW State (Note 4)
IIK DC Input Diode Current
-50
 VI < GND
mA
IOK DC Output Diode Current
-50
 VO < GND
mA
IO DC Output Current
64
 Output at HIGH State, VO > VCC
mA
128
 Output at LOW State, VO >VCC
ICC DC Supply Current per Supply Pin
±64

mA
IGND DC Ground Current per Ground Pin
±128

mA
TSTG Storage Temperature Range
-65 to +150




Description

The 74LVT1624 contain sixteen non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. Each byte has separate control inputs which can be shorted together for full 16-bit operation. The T/R inputs determine the direction of data flow through the device. The OE inputs disable both the A and B ports by placing them in a high impedance state.

The 74LVT1624 data inputs include bushold, eliminating  the need for external pull-up resistors to hold unused inputs.

These non-inverting transceivers are designed for low-voltage (3.3V) VCC applications, but with the capability to provide a TTL interface to a 5V environment. The 74LVT1624  are fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining low power dissipation.
