Product Details

Description



Features:

• 16-bit transparent latch
• 3-State buffers
• Output capability: +12 mA / 12 mA
• TTL input and output switching levels
• Input and output interface capability to systems at 5 V supply
• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
• Live insertion/extraction permitted
• Outputs include series resistance of 30 W making external resistors unnecessary
• Power-up reset
• Power-up 3-State
• No bus current loading when output is tied to 5 V bus
• Latch-up protection exceeds 500 mA per JEDEC Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model


Pinout

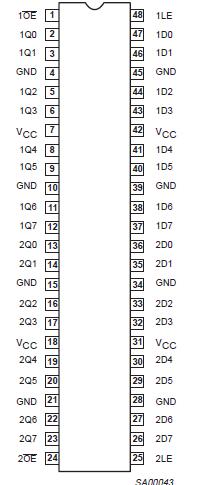

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage 0.5 to +4.6 V
IIK DC input diode current VI < 0 50 mA
VI DC input voltage3 0.5 to +7.0 V
IOK DC output diode current VO < 0 50 mA
VOUT DC output voltage3 Output in Off or High state 0.5 to +7.0 V
IO
Output in Low state 128
IOUT mA		 DC output current Output in Low state 128 mA
Output in High state -64
Tstg storage temperature 65 to 150 °C

NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.

3. The input and output negative voltage ratings may be exceeded if the input and output clamp current ratings are observed.



Description

The 74LVT162373 is a high-performance BiCMOS product designed for VCC operation at 3.3 V.

This device is a 16-bit transparent D-type latch with non-inverting 3-State bus compatible outputs. The device can be used as two 8-bit latches or one 16-bit latch. When Latch Enable (LE) input is High, the Q outputs follow the data (D) inputs. When Latch Enable is taken Low, the Q outputs are latched at the levels of the D inputs one setup time prior to the High-to-Low transition.

The 74LVT162373 is designed with 30 W series resistance in both the High and Low states of the output. This design reduces the noise in applications such as memory address drivers, clock drivers, and bus receivers/transmitters.
