74LVT162240A

Features: 16-bit bus interface3-State buffersOutput capability: +12mA/-12mATTL input and output switching levelsInput and output interface capability to systems at 5V supplyBus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputsLive insertion/extraction permitt...

product image

74LVT162240A Picture
See larger image
SeekIC No. : 004251481 Detail

74LVT162240A: Features: 16-bit bus interface3-State buffersOutput capability: +12mA/-12mATTL input and output switching levelsInput and output interface capability to systems at 5V supplyBus-hold data inputs elim...

74LVT162240A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVT162240A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

16-bit bus interface
3-State buffers
Output capability: +12mA/-12mA
TTL input and output switching levels
Input and output interface capability to systems at 5V supply
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
Live insertion/extraction permitted
Outputs include series resistance of 30? making external termination resistors unnecessary
Power-up 3-State
No bus current loading when output is tied to 5V bus
Latch-up protection exceeds 500mA per JEDEC Std 17
ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model
Same part as 74LVT16240A-1


Pinout

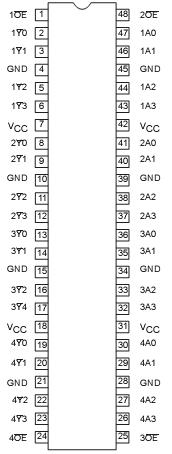

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   -0.5 to +4.6 V
IIK DC input diode current VI < 0
 -50 mA

V I		 DC input voltage3   -0.5 to +7.0 V
I OK DC output diode current VO < 0
 -50 mA

VOUT		 DC output voltage3 Output in Off or High state -0.5 to +7.0 V
IOUT DC output current Output in Low state 128 mA
Output in Low state -64
Tstg Storage temperature range   -65 to +150



Description

The 74LVT162240A is a high-performance BiCMOS product designed for VCC operation at 3.3V.This device is an inverting 16-bit buffer that is ideal for driving bus lines. The device features four Output Enables (1OE, 2OE, 3OE,4OE), each controlling four of the 3-State outputs.The 74LVT162240A is designed with 30  series resistance in both?the pull-up and pull-down output structures. This design reduces line noise in applications such as memory address drivers, clock drivers,and bus receivers/transmitters.

The 74LVT162240A is the same as the 74LVT16240A-1. The part number has been changed to reflect industry standards.
