74LVQ158

Features: ` HIGH SPEED: tPD = 5.5 ns (TYP.) at VCC = 3.3 V` COMPATIBLE WITH TTL OUTPUTS` LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25` LOW NOISE: VOLP = 0.2V (TYP.) at VCC = 3.3V` 75W TRANSMISSION LINE OUTPUT DRIVE CAPABILITY` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 12mA (MIN) at VCC = 3.0...

product image

74LVQ158 Picture
See larger image
SeekIC No. : 004251449 Detail

74LVQ158: Features: ` HIGH SPEED: tPD = 5.5 ns (TYP.) at VCC = 3.3 V` COMPATIBLE WITH TTL OUTPUTS` LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25` LOW NOISE: VOLP = 0.2V (TYP.) at VCC = 3.3V` 75W TRANSMISSI...

74LVQ158 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVQ158
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` HIGH SPEED: tPD = 5.5 ns (TYP.) at VCC = 3.3 V
` COMPATIBLE WITH TTL OUTPUTS
` LOW POWER DISSIPATION: ICC = 4 A (MAX.) at TA=25
` LOW NOISE: VOLP = 0.2V (TYP.) at VCC = 3.3V
` 75W TRANSMISSION LINE OUTPUT DRIVE CAPABILITY
` SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 12mA (MIN) at VCC = 3.0 V
` PCI BUS LEVELS GUARANTEED AT 24 mA
` BALANCED PROPAGATION DELAYS: tPLH tPHL
` OPERATING VOLTAGE RANGE: VCC(OPR) = 2V to 3.6V (1.2V Data Retention)
` PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 158
` IMPROVED LATCH-UP IMMUNITY


Pinout

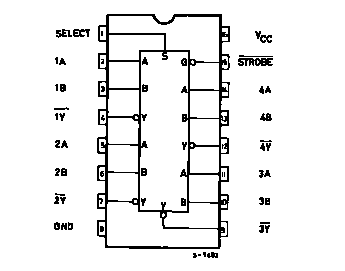

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7.0
V
VI
 DC Input Voltage
-0.5 to VCC + 0.5
V
VO
 DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
± 20
mA
IOK
 DC Output Diode Current
± 20
mA
IO
 DC Output Current
+50
mA
ICC or IGND
 DC VCC or Ground Current
±200
mA
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
300
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional
operation under these conditions is not implied




Description

The 74LVQ158 is a low voltage CMOS QUAD 2-CHANNEL MULTIPLEXER (INVERTING) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and low noise 3.3V applications.

The 74LVQ158 consists of four 2-input digital multiplexers with common select and strobe inputs. When STROBE input is held high selection of data is inhibit and all the outputs become high. The SELECT decoding determines whether the A or B inputs get routed to their corresponding Y outputs.

All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
