74LVC827A

Features: •5-volt tolerant inputs/outputs, for interfacing with 5-volt logic•Supply voltage range of 2.7V to 3.6V•Complies with JEDEC standard no. 8-1A•CMOS low power consumption•Direct interface with TTL levels•High impedance when VCC= 0VPinoutSpecifications ...

product image

74LVC827A Picture
See larger image
SeekIC No. : 004251377 Detail

74LVC827A: Features: •5-volt tolerant inputs/outputs, for interfacing with 5-volt logic•Supply voltage range of 2.7V to 3.6V•Complies with JEDEC standard no. 8-1A•CMOS low power consump...

74LVC827A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVC827A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•5-volt tolerant inputs/outputs, for interfacing with 5-volt logic
•Supply voltage range of 2.7V to 3.6V
•Complies with JEDEC standard no. 8-1A
•CMOS low power consumption
•Direct interface with TTL levels
•High impedance when VCC= 0V


Pinout

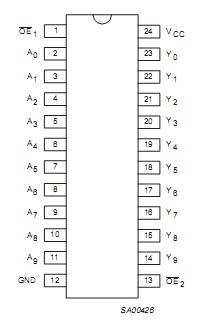

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   0.5 to +6.5 V
IIK DC input diode current V1<0 50 mA
VI DC input voltage Note 2 0.5 to +6.5 V
IOK DC output diode current VO>VCC or VO<O ±50 mA
VO DC output voltage; output HIGH or LOW state Note 2 0.5 to VCC +0.5 V
DC output voltage; output 3-State Note 2 0.5 to 6.5
IO DC output source or sink current VO = 0 to VCC ±50 mA
IGND,ICC DC VCC or GND current   ±100 mA
Tstg Storage temperature range   65 to +150 °C
PTOT Power dissipation per package
plastic mini-pack (SO)
plastic shrink mini-pack (SSOP and TSSOP)		 above +70OC derate linearly with 8 mW/K
above +60OC derate linearly with 5.5 mW/K		 500
500		 mW



Description

The 74LVC827A is a high performance, low-power, low-voltage Si-gate CMOS device and superior to most advanced CMOS compatible TTL families.

Inputs can be driven from either 3.3V or 5.0V devices. In 3-state operation, outputs can handle 5V. This feature allows the use of these devices as translators in a mixed 3.3V/5V environment.

The 74LVC827A is a10-bit buffer/line driver with 3-State outputs The 3-State outputs are controlled by the output enable inputs  OE</a>1 and OE</a>2.

A HIGH on OE</a>n  causes the outputs to assume a high impedance OFF-state.
