74LVC27

Features: • Wide supply voltage: 1.2 to 3.6 V• In accordance with JEDEC standard no. 8-1A.• Inputs accept voltages up to 5.5 V• CMOS low power consumption• Direct interface with TTL levels• Output capability: standard• ICC category: SSIPinoutSpecifications...

product image

74LVC27 Picture
See larger image
SeekIC No. : 004251313 Detail

74LVC27: Features: • Wide supply voltage: 1.2 to 3.6 V• In accordance with JEDEC standard no. 8-1A.• Inputs accept voltages up to 5.5 V• CMOS low power consumption• Direct inter...

74LVC27 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVC27
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide supply voltage: 1.2 to 3.6 V
• In accordance with JEDEC standard no. 8-1A.
• Inputs accept voltages up to 5.5 V
• CMOS low power consumption
• Direct interface with TTL levels
• Output capability: standard
• ICC category: SSI


Pinout

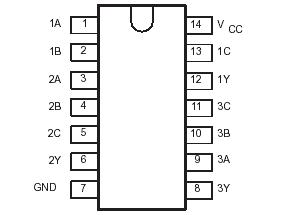

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   0.5 to +6.5 V
IIK DC input diode current VI<~ 0 50 mA
VI DC input voltage Note 2 0.5 to +5.5 V
IOK DC output diode current VO >VCC or VO< 0 ±50 mA
VO DC output voltage Note 2 0.5 to VCC +0.5 V
IO DC output source or sink current VO = 0 to VCC ±50 mA
IGND, ICC DC VCC or GND current   ±100 mA
Tstg Storage temperature range   60 to +150 °C
PTOT Power dissipation per package
plastic mini-pack (SO)
plastic shrink mini-pack (SSOP and TSSOP)		 above +70°C derate linearly with 8 mW/K
above +60°C derate linearly with 5.5 mW/K		 500
500		 mW



Description

The 74LVC27 is a high-performance, low-power, low-voltage Si-gate CMOS device and superior to most advanced CMOS compatible TTL families.


The 74LVC27 provides the 3-input NOR function.
