74LVC1G79

Features: ` Wide supply voltage range from 1.65 to 5.5 V` High noise immunity` Complies with JEDEC standard: JESD8-7 (1.65 to 1.95 V) JESD8-5 (2.3 to 2.7 V) JESD8B/JESD36 (2.7 to 3.6 V).` ±24 mA output drive (VCC = 3.0 V)` CMOS low power consumption` Latch-up performance £250 mA` Direct i...

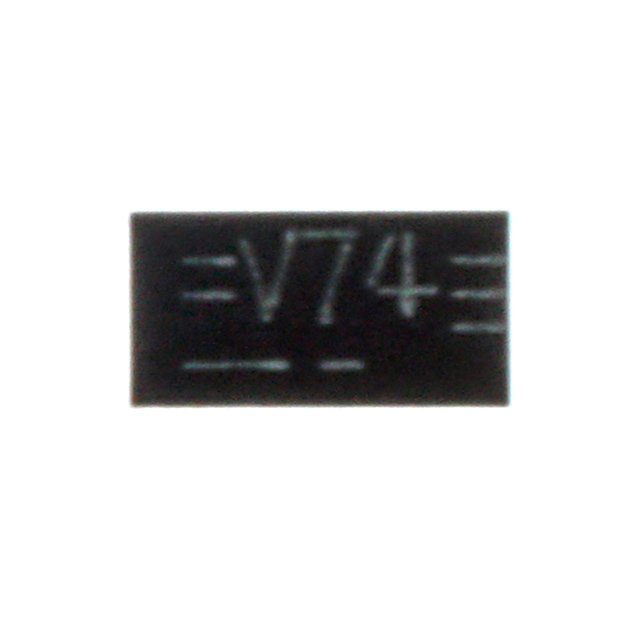

product image

74LVC1G79 Picture
See larger image
SeekIC No. : 004251285 Detail

74LVC1G79: Features: ` Wide supply voltage range from 1.65 to 5.5 V` High noise immunity` Complies with JEDEC standard: JESD8-7 (1.65 to 1.95 V) JESD8-5 (2.3 to 2.7 V) JESD8B/JESD36 (2.7 to 3.6 V).` ±24 mA ...

74LVC1G79 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVC1G79
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Wide supply voltage range from 1.65 to 5.5 V
` High noise immunity
` Complies with JEDEC standard:
  JESD8-7 (1.65 to 1.95 V)
  JESD8-5 (2.3 to 2.7 V)
  JESD8B/JESD36 (2.7 to 3.6 V).
` ±24 mA output drive (VCC = 3.0 V)
` CMOS low power consumption
` Latch-up performance £250 mA
` Direct interface with TTL levels
` Inputs accept voltages up to 5 V
` SOT353 package.


Pinout

Connection Diagram


Description

The 74LVC1G79 is a high-performance, low-power, low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families.

Inputs can be driven from either 3.3 or 5 V devices. This feature allows the use of this device in a mixed 3.3 and 5 V environment.

The 74LVC1G79 is fully specified for partial power-down applications using Ioff. The Ioff circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

The 74LVC1G79 provides a single positive-edge triggered D-type flip-flop.

Information of the 74LVC1G79 on the data input is transferred to the Q output on the LOW-to-HIGH transition of the clock pulse. The D input must be stable one set-up time prior to the LOW-to-HIGH clock transition for predictable operation.
