74LVC1G126

Features: ` Wide supply voltage range from 1.65 V to 5.5 V` High noise immunity` Complies with JEDEC standard: JESD8-7 (1.65 V to 1.95 V) JESD8-5 (2.3 V to 2.7 V) JESD8B/JESD36 (2.7 V to 3.6 V).` ±24 mA output drive (VCC = 3.0 V)` CMOS low power consumption` Latch-up performance exceeds 250 mA`...

product image

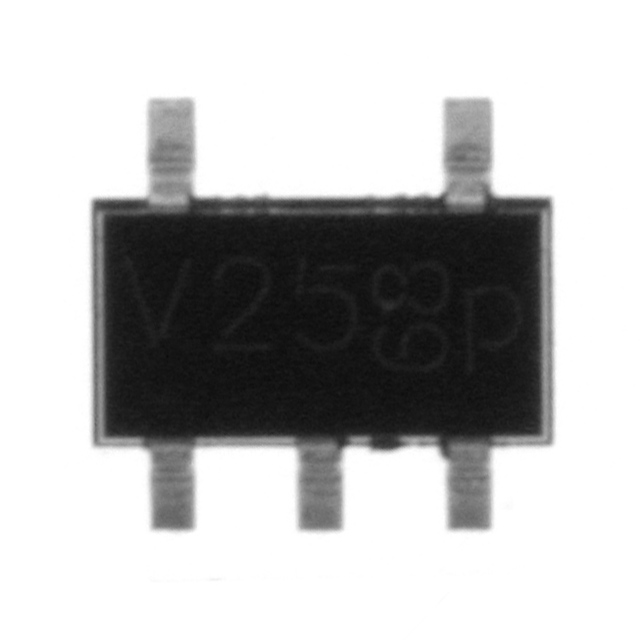

74LVC1G126 Picture
See larger image
SeekIC No. : 004251269 Detail

74LVC1G126: Features: ` Wide supply voltage range from 1.65 V to 5.5 V` High noise immunity` Complies with JEDEC standard: JESD8-7 (1.65 V to 1.95 V) JESD8-5 (2.3 V to 2.7 V) JESD8B/JESD36 (2.7 V to 3.6 V).`...

74LVC1G126 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVC1G126
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Wide supply voltage range from 1.65 V to 5.5 V
` High noise immunity
` Complies with JEDEC standard:
  JESD8-7 (1.65 V to 1.95 V)
  JESD8-5 (2.3 V to 2.7 V)
  JESD8B/JESD36 (2.7 V to 3.6 V).
` ±24 mA output drive (VCC = 3.0 V)
` CMOS low power consumption
` Latch-up performance exceeds 250 mA
` Direct interface with TTL levels
` Inputs accept voltages up to 5 V
` Multiple package options
` ESD protection:
  HBM EIA/JESD22-A114-B exceeds 2000 V
  MM EIA/JESD22-A115-A exceeds 200 V.
` Specified from -40  to +85 and -40 to +125 .


Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC supply voltage   -0.5 +6.5 V
IIK input diode current VI < 0 - -50 mA
VI input voltage   -0.5 +6.5 V
IOK output diode current VO > VCC or VO < 0   - ±50 mA
VO output voltage enable mode; notes 1 and 2 -0.5 VCC + 0.5 V
disable mode -0.5 +6.5 V
Power-down mode; note 2 -0.5 +6.5 V
IO output source or sink current VO = 0 to VCC - ±50 mA
ICC, IGND VCC or GND current   - ±100 mA
Tstg storage temperature   -65 +150
Ptot power dissipation Tamb = -40  to +125 - 250 mW

Notes
1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. When VCC = 0 V (Power-down mode), the output voltage can be 5.5 V in normal operation.




Description

The 74LVC1G126 is a high-performance, low-power,low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families.

The input can be driven from either 3.3 V or 5 V devices.This feature allows the use of this device in a mixed 3.3 V and 5 V environment.

The 74LVC1G126 is fully specified for partial power-down applications using Ioff. The Ioff circuitry disables the output,preventing the damaging backflow current through the device when it is powered down.

The 74LVC1G126 provides one non-inverting buffer/line driver with 3-state output. The 3-state output is controlled by the output enable input (OE). A low level at pin OE causes the output to assume a high-impedance OFF-state.
