74LVC16240A

Features: 5 volt tolerant inputs/outputs for interfacing with 5V logicWide supply voltage range of 1.2V to 3.6VComplies with JEDEC standard no. 8-1ACMOS low power consumptionMULTIBYTETM flow-through standard pin-out architectureLow inductance multiple power and ground pins for minimum noise and gr...

product image

74LVC16240A Picture
See larger image
SeekIC No. : 004251233 Detail

74LVC16240A: Features: 5 volt tolerant inputs/outputs for interfacing with 5V logicWide supply voltage range of 1.2V to 3.6VComplies with JEDEC standard no. 8-1ACMOS low power consumptionMULTIBYTETM flow-through...

74LVC16240A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVC16240A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5 volt tolerant inputs/outputs for interfacing with 5V logic
Wide supply voltage range of 1.2V to 3.6V
Complies with JEDEC standard no. 8-1A
CMOS low power consumption
MULTIBYTETM flow-through standard pin-out architecture
Low inductance multiple power and ground pins for minimum noise and ground bounce
Direct interface with TTL levels


Pinout

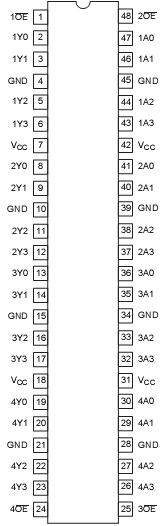

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS LIMITS UNIT
MIN MAX
VCC DC supply voltage   0.5 +6.5 V
IIK DC input diode current VI < 0
 50 mA
VI DC input voltage Note 2 0.5 +6.5 V
IOK DC output diode current VO > VCC or VO < 0
50		 mA
VO DC output voltage; output HIGH or LOW
state		 Note 2 0.5 VCC+ 0.5
 V
VO DC output voltage; output 3-State Note 2 0.5 6.5 V
IO DC output source or sink current VO = 0 to VCC
50		 mA
IGND , ICC
 DC V or GND current
100		 mA
Tstg Storage temperature rangeg   65 +150
Ptot Power dissipation per package
SO package
SSOP and TSSOP package		 Above +70 derate linearly 8mW/K
Above +60 derate linearly 5.5mW/K		   500
500		 mA



Description

The 74LVC16240A  is a high-performance, low-power, low-voltage Si-gate CMOS device, superior to most advanced CMOS compatible TTL families. Inputs can be driven from either 3.3V or 5 devices. In 3-State operation, outputs can handle 5V. These features allow the use of these devices in a mixed 3.3V/5V environment.

The 74LVC16240A  is a 16-bit inverting buffer/line driver with 3-State outputs. The 3-State outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs tassume a high impedance OFF-state. The 74LVC16240A  is identical to the 74LVC16244A  but has inverting outputs.
