74LVC161284

Features: ·HIGH SPEED: tPD = 9ns (MAX.) at VCC = 3V·LOW POWER DISSIPATION: ICC=20mA (MAX) at VCC=3.6V TA=85°C·TTL COMPATIBLE INPUTS VIH=2V (MIN) VIL=0.8(MAX)·OPERATING VOLTAGE RANGE: VCC(OPR) = 3.0V to 3.6V·A PORT HAVE STANDARD 4mA TOTEM POLE OUTPUT·B PORT HIGH DRIVE SOURCE/SINK CAPABILITY OF 14mA...

product image

74LVC161284 Picture
See larger image
SeekIC No. : 004251219 Detail

74LVC161284: Features: ·HIGH SPEED: tPD = 9ns (MAX.) at VCC = 3V·LOW POWER DISSIPATION: ICC=20mA (MAX) at VCC=3.6V TA=85°C·TTL COMPATIBLE INPUTS VIH=2V (MIN) VIL=0.8(MAX)·OPERATING VOLTAGE RANGE: VCC(OPR) = 3.0V...

74LVC161284 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74LVC161284
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·HIGH SPEED: tPD = 9ns (MAX.) at VCC = 3V
·LOW POWER DISSIPATION: ICC=20mA (MAX) at VCC=3.6V TA=85°C
·TTL COMPATIBLE INPUTS VIH=2V (MIN) VIL=0.8(MAX)
·OPERATING VOLTAGE RANGE: VCC(OPR) = 3.0V to 3.6V
·A PORT HAVE STANDARD 4mA TOTEM POLE OUTPUT
·B PORT HIGH DRIVE SOURCE/SINK CAPABILITY OF 14mA
·SUPPORT IEEE STD 1284-I (LEVEL 1 TYPE) AND IEEE STD 1284-II (LEVEL 2 TYPE) FOR
BIDIRECTIONAL PARALLEL
COMMUNICATIONS BETWEE NPERSONAL
COMPUTER ANT PRINTING PERIPHERALS
·TRANSLATION CAPABILITY ALLOW OUTPUTS ON CABLE SIDE TO INTERFACE WITH 5V SIGNAL
·PULL-UP RESISTOR INTEGRATED ONALL OPEN-DRAIN OUTPUT ELIMINATE THE NEED FOR DISCRETE RESISTOR
·REPLACE THE FUNCTION OF TWO 74LVC1284 DEVICES


Pinout

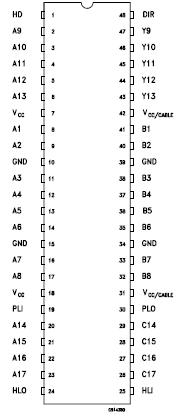

Connection Diagram


Specifications

SYMBOL PARAMETER Value UNIT
VCC Supply voltagee 0.5 to+ 7 V
VCC cable Cable Supply Voltage (must be ³ VCC) 0.5 to+ 7 V
VIA DC Input Voltage A1-A13, PLIN, DIR, HDIN -0.5 to +VCC + 0.5 V
VIB DC Input Voltage B1-B8, C14-C17, HLIN -0.5 to +5.5 V
VIBp DC Input Voltage B1-B8, C14-C17, HLIN (40ns transient) -2 to +7 mA
VOA DC Output Voltage A1-A8, A14-A17, HLIN -0.5 to +VCC + 0.5 mA
VOB DC Output Voltage B1-B8, Y9-Y13, PLIN -0.5 to +5.5 mA
VOBp DC Output Voltage B1-B8, Y9-Y13, PLIN (40ns transient) -2 to +7 mA
IIK DC Input Diode Current DIR, HD A9-A13, PLIN C14-C17 - 20 mA
IOK DC Output Diode Current A1-A8, A14-A17, HLIN ± 50 mA
B1-B8, Y9-Y13, PLIN -50
IO DC Output Current A1-A8, HLIN ± 25 mA
B1-B8, Y9-Y13 ± 50
PLO = LOW 84
PLO = HIGH -50
ICC ± 200 or IGND DC VCC or Ground Current per Supply Pin ± 200 mA
Tstg Storage temperature 65 to 150

TL		 Lead Temperature (10 sec) 300

Absolute Maximum Rating are those value beyond which damage to the device may occur. Functional operation under these condition is not implied



Description

The 74LVC161284 contains eight high speed non inverting bidirectional buffers and eleven control/ status non-inverting buffers with open drain outputs fabricated in silicon gate C2MOS technology. It's intended to provide a standard signaling method for a bi-direction parallel peripheral in an Extended Capabilities Port Mode (ECP). The HD (Active HIGH) input pin enables the Cable port to switch from Open Drain to a high drive totem pole output, capable of sourcing 14mA on all thirteen buffer and 84mA on PERI LOGIC OUTPUT buffer. The DIR input of the 74LVC161284 determines the direction of data flow on the bidirectional buffers. DIR (Active HIGH) enables data flow from A port to B port. DIR (Active LOW) enables data flow from B port to A port. It is available in the commercial temperature range.
