74LVC14A

Features:

*Wide supply voltage range of: 1.2 V to 3.6 V
*In accordance with JEDEC standard no. 8-1A
*Inputs accept voltages up to 5.5 V
*CMOS low power consumption
*Direct interface with TTL levels


Application

*Wave and pulse shapers for highly noisy environments
*Astable multivibrators
*Monostable multivibrators

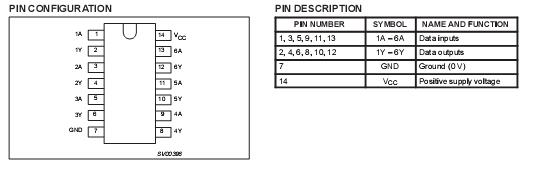

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to +6.5	V
IIK	DC input diode current	VI< 0	50	mA
VI	DC input voltage	Note 2	0.5 to +5.5	V
IOK	DC output diode current	VO>VCC or VO<0	±50	mA
VI/O	DC output voltage; output HIGH or LOW	Note 2	0.5 to VCC +0.5	V
	DC input voltage; output 3-State	Note 2	0.5 to 6.5
IO	DC output source or sink current	VO = 0 to VCC	±50	mA
IGND,ICC	DC VCC or GND current		±100	mA
Tstg	Storage temperature range		65 to +150	°C
PTOT	Power dissipation per package plastic mini-pack (SO) plastic shrink mini-pack (SSOP and TSSOP)	above +70 derate linearly with 8 mW/K abov

Description

The 74LVC14A is a high-performance, low power, low-voltage Si-gate CMOS device and superior to most advanced CMOS compatible TTL families.

Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in a mixed 3.3 V/5 V environment.

The 74LVC14A provides six inverting buffers with Schmitt-trigger action. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.
