Features: Optimized for Low Voltage applications: 1.0V to 6.0VAccepts TTL input levels between VCC = 2.7 V and VCC = 3.6 VTypical VOLP (output ground bounce) < 0.8 V at VCC = 3.3 V,Tamb= 25.Very low typ ON resistance: 25at VCC VEE = 4.5 V 35at VCC VEE = 3.0 V 60 at VCC VEE = 2.0 VOutput capab...
74LV4066: Features: Optimized for Low Voltage applications: 1.0V to 6.0VAccepts TTL input levels between VCC = 2.7 V and VCC = 3.6 VTypical VOLP (output ground bounce) < 0.8 V at VCC = 3.3 V,Tamb= 25.Very ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
SYMBOL |
PARAMETER |
CONDITIONS |
RATING |
UNIT |
VCC |
DC supply voltage |
|
0.5 to +7.0 |
V |
IIK |
DC input diode current |
VI < 0.5 or VI > VCC + 0.5V |
20 |
mA |
IOK |
DC output diode current |
VO < 0.5 or VO > VCC + 0.5V |
50 |
mA |
IO |
DC switch current |
0.5V < VO < VCC + 0.5V |
25 |
mA |
Tstg |
Storagetemperature range |
|
65 to +150 |
|
PTOT |
Powerdissipationperpackage
plastic DIL
plastic mini-pack (SO)
plastic shrink mini-pack (SSOP and TSSOP) |
fortemperaturerange:40to+125
above +70 derate linearly with 12 mW/K
above +70 derate linearly with 8 mW/K
above +60derate linearly with 5.5 mW/K |
750
500
400 |
mW |
The 74LV4066 is a low-voltage Si-gate CMOS device that is pin andfunction compatible with 74HC/HCT4066.

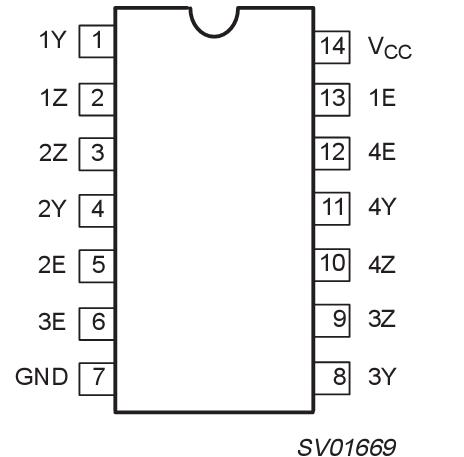

The 74LV4066 has four independent analog switches. Each switchhas two input/output terminals (nY, nZ) and an active HIGH enableinput (nE). When nE is LOW the corresponding analog switch isturned off.
The 74LV4066 has an on resistance which is dramatically reducedin comparison with 74HCT4066.
