Features: • Wide operating voltage: 1.0 to 5.5 V• Optimized for low voltage applications: 1.0 to 3.6 V• Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V• Typical VOLP (output ground bounce) < 0.8 V at VCC = 3.3 V, Tamb = 25°C• Typical VOHV (output VOH...
74LV174: Features: • Wide operating voltage: 1.0 to 5.5 V• Optimized for low voltage applications: 1.0 to 3.6 V• Accepts TTL input levels between VCC = 2.7 V and VCC = 3.6 V• Typica...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
SYMBOL | PARAMETER | CONDITIONS | RATING | UNIT |
VCC | DC supply voltage | 0.5 to +7.0 | V | |
±IIK | DC input diode current | VI < 0.5 or VI > VCC + 0.5V | 20 | mA |
±IOK | DC output diode current | VO < 0.5 or VO > VCC + 0.5V | 50 | mA |
±IO | DC output source or sink current standard outputs |
0.5V < VO < VCC + 0.5V | 25 | mA |
±IGND, ±ICC |
DC VCC or GND current for types with standard outputs |
50 |
mA | |
Tstg | Storage temperature range | 65 to +150 | °C | |
PTOT | Power dissipation per package plastic DIL plastic mini-pack (SO) plastic shrink mini-pack (SSOP and TSSOP) |
for temperature range: 40 to +125°C above +70°C derate linearly with 12mW/K above +70°C derate linearly with 8 mW/K above +60°C derate linearly with 5.5 mW/K |
750 500 400 |
mW |
NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

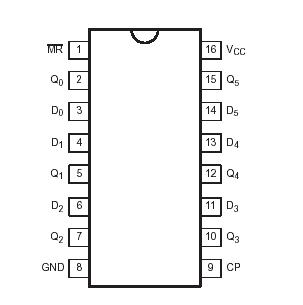

The 74LV174 is a lowvoltage Sigate CMOS device and is pin and function compatible with the 74HC/HCT174.
The 74LV174 has six edgetriggered Dtype flipflops with individual D inputs and Q outputs. The common clock (CP) and master reset (MR) inputs load and reset (clear) all flipflops simultaneously.
The register of the 74LV174 is fully edgetriggered. The state of each D input, one setup time prior to the LOWtoHIGH clock transition, is transferred to the corresponding output of the flipflop.
A LOW level on the MR input forces all outputs LOW, independently of clock or data inputs.
The 74LV174 is useful for applications requiring true outputs only and clock and master reset inputs that are common to all storage elements.
