74HC/HCT154

Features:

· 16-line demultiplexing capability
· Decodes 4 binary-coded inputs into one of 16 mutually exclusive outputs
· 2-input enable gate for strobing or expansion
· Output capability: standard
· I_CC category: MSI

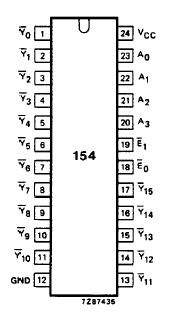

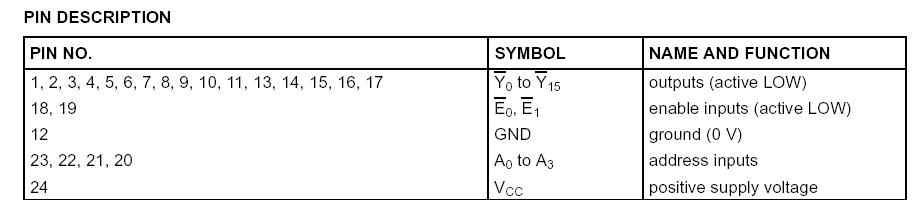

Pinout




Description

   The 74HC/HCT154 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC
standard no. 7A.

   The 74HC/HCT154 decoders accept four active HIGH binary address inputs and provide 16 mutually exclusive active LOW outputs.

   The 2-input enable gate can be used to strobe the decoder to eliminate the normal decoding "glitches" on the outputs, or it can be used for the expansion of the decoder.

   The enable gate of the 74HC/HCT154 has two AND'ed inputs which must be LOW to enable the outputs.

   The "154" can be used as a 1-to-16 demultiplexer by using one of the enable inputs as the multiplexed data input.

   When the other enable is LOW, the addressed output will follow the state of the applied data.
