74HC/HCT03

Features:

· Level shift capability
· Output capability: standard (open drain)
· I_CC category: SSI



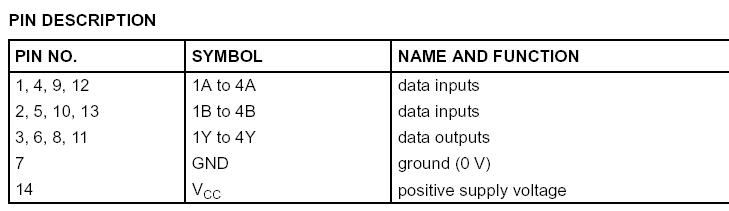

Pinout




Specifications

SYMBOL	PARAMETER	MIN.	MAX.	UNIT	CONDITIONS
VCC	DC supply voltage	-0.5	+7	V
VO	DC output voltage	-0.5	+7	V
IIK	DC input diode current		20	mA	for VI < -0.5 V or VI > VCC + 0.5 V
-IOK	DC output diode current		20	mA	for VO < -0.5 V
-IO	DC output sink current		25	mA	for - 0.5 V < VO
±ICC; ±IGND	DC VCC or GND current		50	mA
Tstg	storage temperature range	-65	+150	°C
Ptot	power dissipation per package plastic DIL		750	mW	for temperature range; -40 to +125 °C 74HC/HCT above +70 °C: derate linearly with 12 mW/K
	plastic mini-pack (SO)		500	mW	above +70 °C: derate linearly with 8 mW/K

Description

   The 74HC/HCT03 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.

   The 74HC/HCT03 provide the 2-input NAND function.

  The 74HC/HCT03 have open-drain N-transistor outputs, which are not clamped by a diode connected to V_CC. In the OFF-state, i.e. when one input is LOW, the output may be pulled to any voltage between GND and VO_max.

   This allows the 74HC/HCT03 to be used as a LOW-to-HIGH or HIGH-to-LOW level shifter. For digital operation and OR-tied output applications, these devices must have a pull-up resistor to establish a logic HIGH level.
