74HC/HCT107

Features:

· Output capability: standard
· I_CC category: flip-flops

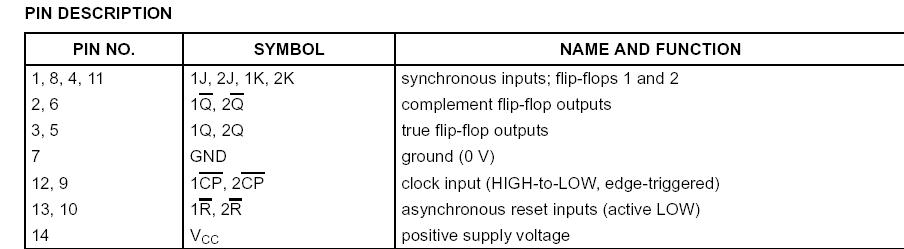

Pinout




Description

   The 74HC/HCT107 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC
standard no. 7A.

   The 74HC/HCT107 are dual negative-edge triggered JK-type flip-flops featuring individual J, K, clock (nCP) and reset (nR) inputs; also complementary Q andQ outputs.

   The J and K inputs must be stable one set-up time prior to the HIGH-to-LOW clock transition for predictable operation.

   The reset (nR) is an asynchronous active LOW input. When LOW, it overrides the clock and data inputs, forcing the Q output LOW and the Q output HIGH.

   Schmitt-trigger action of the 74HC/HCT107 in the clock input makes the circuit highly tolerant to slower clock rise and fall times.
