74HCT4067

Features: ` Low ON resistance: 80 (typ.) at VCC = 4.5 V 70 (typ.) atVCC = 6.0 V 60 (typ.) atVCC = 9.0 Vtypical break before make built-in` Output capability: non-standard` ICC category: MSIApplication· Analog multiplexing and demultiplexing· Digital multiplexing and demultiplexing· Signal ga...

product image

74HCT4067 Picture
See larger image
SeekIC No. : 004250915 Detail

74HCT4067: Features: ` Low ON resistance: 80 (typ.) at VCC = 4.5 V 70 (typ.) atVCC = 6.0 V 60 (typ.) atVCC = 9.0 Vtypical break before make built-in` Output capability: non-standard` ICC category: MSIApp...

74HCT4067 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74HCT4067
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low "ON" resistance:
    80 (typ.) at VCC = 4.5 V
    70 (typ.) at  VCC = 6.0 V
    60 (typ.) at  VCC = 9.0 V
    typical "break before make" built-in
` Output capability: non-standard
` ICC category: MSI


Application

· Analog multiplexing and demultiplexing
· Digital multiplexing and demultiplexing
· Signal gating


Pinout

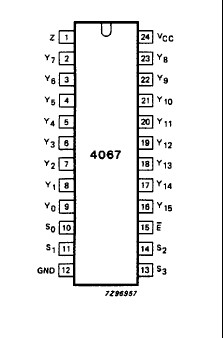

Connection Diagram


Specifications

Limiting values in accordance with the Absolute Maximum System (IEC 134)
Voltages are referenced to GND (ground = 0 V)
SYMBOL PARAMETER MIN. MAX. UNIT CONDITIONS
VCC DC supply voltage -0.5 +11.0 V
±IIK DC digital input diode current 20 mA for VI < -0.5 V or VI > VCC + 0.5 V
±ISK DC switch diode current 20 mA for VI < -0.5 V or VI > VCC + 0.5 V
±IS DC switch current 25 mA for -0.5 V < VS < VCC + 0.5 V
±IEE DC VEE current 20 mA
±ICC;
±IGND		 DC VCC or GND current 50 mA
Tstg storage temperature range -65 +150 °C
Ptot

power dissipation per package

plastic DIL

 750 mW

for temperature range: -40 to +125 °C
74HC/HCT

above +70 °C: derate linearly with 12 mW/k

plastic mini-pack (SO) 500 mW above +70 °C: derate linearly with 8 mW/K
PS power dissipation per switch
Note
1. To avoid drawing VCC current out of terminal Z, when switch current flows in terminals Yn, the voltage drop across
the bidirectional switch must not exceed 0.4 V. If the switch current flows into terminal Z, no VCC current will flow  ut
of terminals Yn. In this case there is no limit for the voltage drop across the switch, but the voltages at Yn and Z may
not exceed VCC or GND.


Description

The 74HCT4067 is high-speed Si-gate CMOS devices and are pin compatible with the "4067" of the "4000B" series. They are specified in compliance with JEDEC standard no. 7A.

The 74HCT4067 is 16-channel analog multiplexers/demultiplexers with four address inputs (S0 to S3) , an active LOW enable input (E), sixteen independent inputs/outputs (Y0 to Y15) and a common input/output (Z). The "4067" contains sixteen bidirectional analog switches, each with one side connected to an independent input/output (Y0 to Y15) and the other side connected to a common input/output (Z).

With E LOW, one of the sixteen switches is selected (low impedance ON-state) of the 74HCT4067 by S0 to S3. All unselected switchesare in the high impedance OFF-state. With E HIGH, all switches are in the high impedance OFF-state, independent of S0 to S3.

The analog inputs/outputs (Y0 to Y15, and Z) can swing between VCC as a positive limit and GND as a negative limit. VCC to GND may not exceed 10 V.
