74HCT273

Features: ` Ideal buffer for MOS microprocessor or memory` Common clock and master reset` Eight positive edge-triggered D-type flip-flops` See 377 for clock enable version` See 373 for transparent latch version` See 374 for 3-state version` Output capability; standard` ICC category: MSIPinou...

product image

74HCT273 Picture
SeekIC No. : 004250869 Detail

74HCT273: Features: ` Ideal buffer for MOS microprocessor or memory` Common clock and master reset` Eight positive edge-triggered D-type flip-flops` See 377 for clock enable version` See 373 for transpare...

floor Price/Ceiling Price

Part Number:
74HCT273
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/5

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Ideal buffer for MOS microprocessor or memory
` Common clock and master reset
` Eight positive edge-triggered D-type flip-flops
` See "377" for clock enable version
` See "373" for transparent latch version
` See "374" for 3-state version
` Output capability; standard
` ICC category: MSI



Pinout

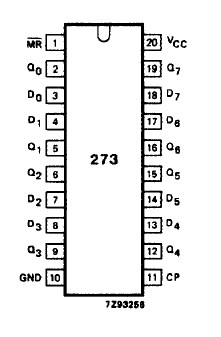

  Connection Diagram


Description

The 74HCT273 is high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.

The 74HCT273 has eight edge-triggered, D-type flip-flops with individual D inputs and Q outputs. The common clock (CP) and master reset (MR) inputs load and reset (clear) all flip-flops simultaneously. The state of each D input, one set-up time before the LOW-to-HIGH clock transition, is transferred to the corresponding output (Qn) of the flip-flop.

All outputs of the 74HCT273 will be forced LOW independently of clock or data inputs by a LOW voltage level on the MR input.

The 74HCT273 is useful for applications where the true output only is required and the clock and master reset are common to all storage elements.
