Features:

•'HC540, CD74HCT540 . . . . . . . . . . . . . . . . . . .Inverting
•'HC541, 'HCT541. . . . . . . . . . . . . . . . . . . . . . Non-Inverting
•Buffered Inputs
•Three-State Outputs
•Bus Line Driving Capability
•Typical Propagation Delay = 9ns at VCC = 5V,CL = 15pF, TA = 25oC
•Fanout (Over Temperature Range)
-Standard Outputs. . . . . . . . . . . . . . .10 LSTTL Loads
-Bus Driver Outputs . . . . . . . . . . . . .15 LSTTL Loads
•Wide Operating Temperature Range . . .-55oC to 125oC
•Balanced Propagation Delay and Transition Times
•Signiﬁcant Power Reduction Compared to LSTTLLogic ICs
•HC Types
-2V to 6V Operation
-High Noise Immunity: NIL = 30%, NIH = 30% of VCCat VCC = 5V
•HCT Types
-4.5V to 5.5V Operation
-Direct LSTTL Input Logic Compatibility,VIL= 0.8V (Max), VIH = 2V (Min)
-CMOS Input Compatibility, Il1µA at VOL, VOH

Application

Amplifiers                        amplifier.ti.com                   Audio
Data Converters             dataconverter.ti.com          Automotive
DSP                                 dsp.ti.com                          Broadband
Interface                         interface.ti.com                  Digital Control
Logic                               logic.ti.com                         Military
Power Mgmt                   power.ti.com                       Optical Networking
Microcontrollers              microcontroller.ti.com          Security
                                                                                  Telephony
                                                                                  Video & Imaging
                                                                                  Wireless

Pinout

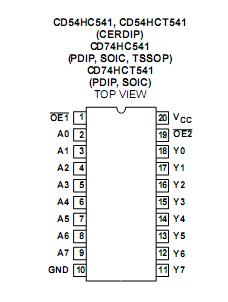

Connection Diagram

Specifications

DC Supply Voltage, V_CC. . . . . . . . . . . . . . . . . . . . . . . .. . . . -0.5V to 7V
DC Input Diode Current, I_IK
For V_I < -0.5V or V_I> V_CC + 0.5V. . . . . . . . . . . . . . . . . . . . . .. . ±20mA
DC Output Diode Current, I_OK
For V_O < -0.5V or V_O > V_CC + 0.5V . . . . . . . . . . . . . . . . . . . . . . ±20mA
DC Drain Current, per Output, I_O
For -0.5V < V_O < V_CC + 0.5V. . . . . . . . . . . . . . . . . . . . . . . . . . . .±35mA
DC Output Source or Sink Current per Output Pin, I_O
For V_O > -0.5V or V_O < V_CC + 0.5V . . . . . . . . . . . . . . . . . . . . . . ±25mA
DC V_CC or Ground Current, I_CC . . . . . . . . . . . . . . . . . . . . . . . . .±50mA

Description

The 74HC541 is Inverting Octal Buffers and Line Drivers with Three-State Outputs and the capability to drive 15 LSTTL loads.The'HC541 and'HCT541 are Non-Inverting Octal Buffers and Line Drivers with Three-StateOut-puts that candrive 15LSTTL loads.The Output Enables(OE1) and (OE2) of the 74HC541 control the Three-State Outputs.Ifeither OE1 or OE2 is HIGH the outputs will be in the high imped- ance state.For data output OE1 and OE2 both mustbe LOW.
